Request Switch Inspection

Inspect for continuity between request switch terminals A and B.
- If not as specified, replace the request switch.

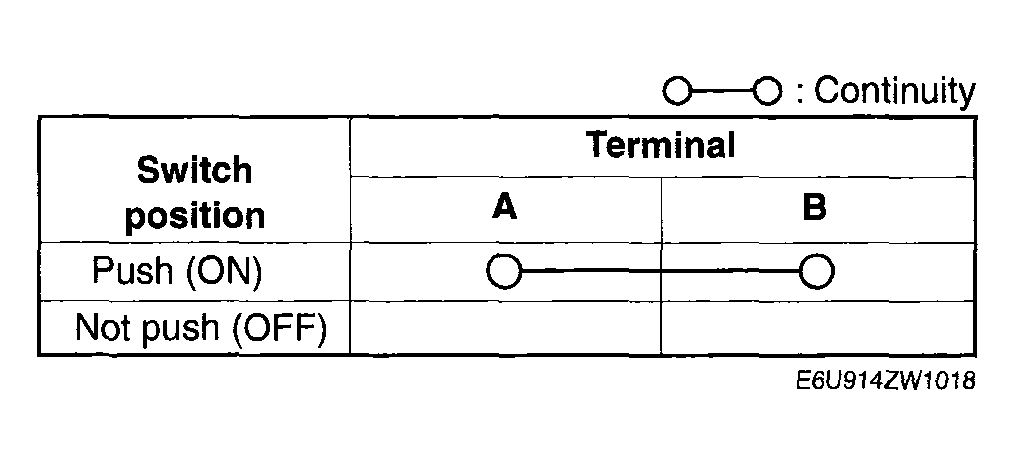

Fig 1: Request Switch Continuity Table
Courtesy of MAZDA MOTORS CORP.

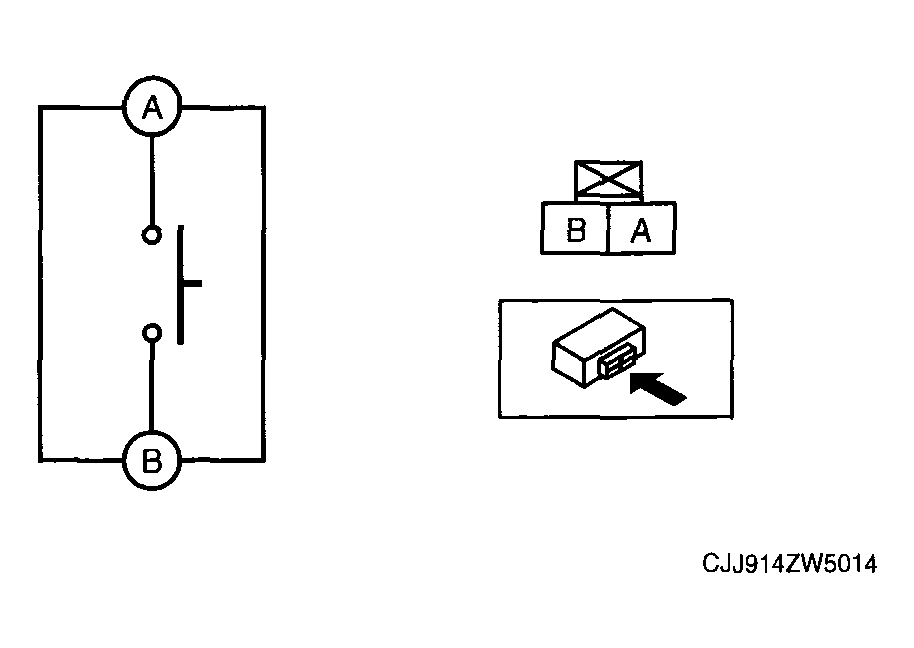

Fig 2: Inspecting Request Switch
Courtesy of MAZDA MOTORS CORP.
