Request Switch Removal/Installation: Driver-side/passenger-side

  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
  2. Remove the door trim. (See DOOR TRIM REMOVAL/INSTALLATION .)
  3. Remove the outer handle. (See OUTER HANDLE REMOVAL/INSTALLATION  .)
  4. Remove the screws A, then remove the handle seat and plate.
  5. Remove screw B, then remove the request switch.

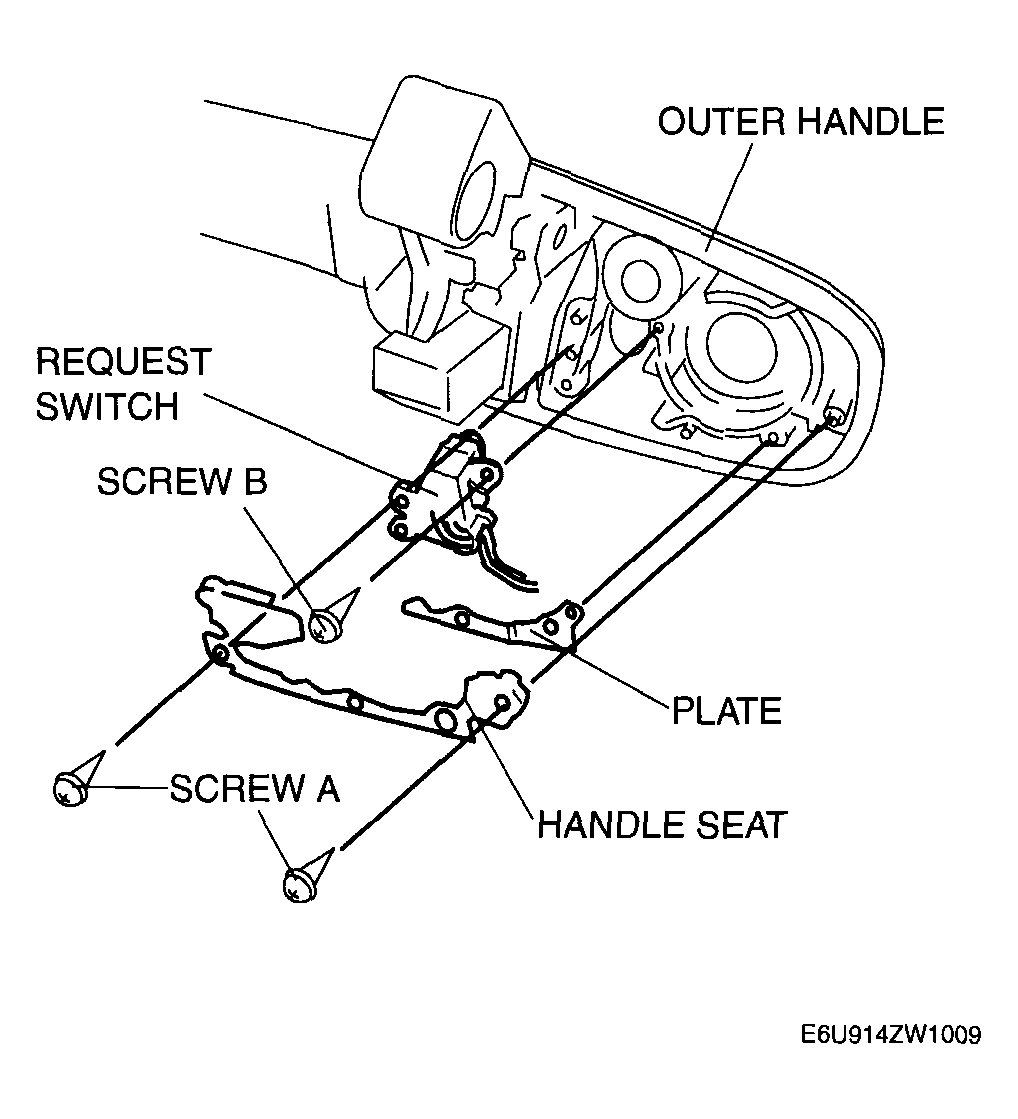

    6. Fig 1: Removing/Installing Request Switch (Driver-Side/Passenger-Side)
    G04323548Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
