Trunk Lid

  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
  2. Open the trunk lid.
  3. Remove the request switch.

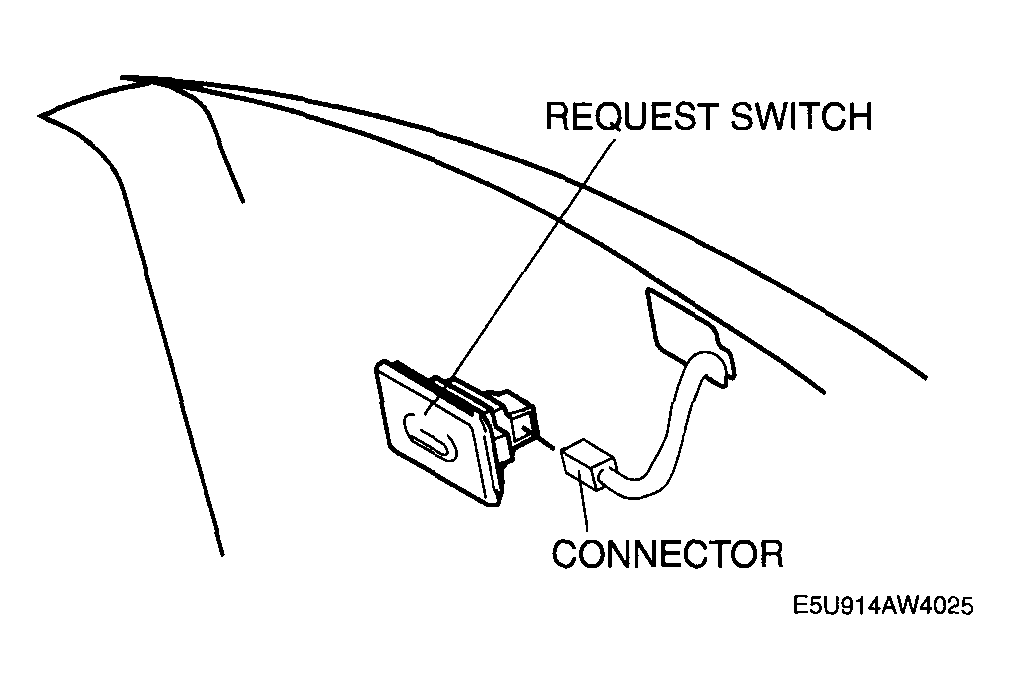

    4. Fig 1: Removing/Installing Request Switch
    G04323549Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
