Key Reminder Switch Removal/Installation [Except Advanced Keyless System]

  1. Remove the battery cover.
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
  3. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
  4. Disconnect the key reminder switch connector.
  5. Remove the key reminder switch.
  6. Install in the reverse order of removal.

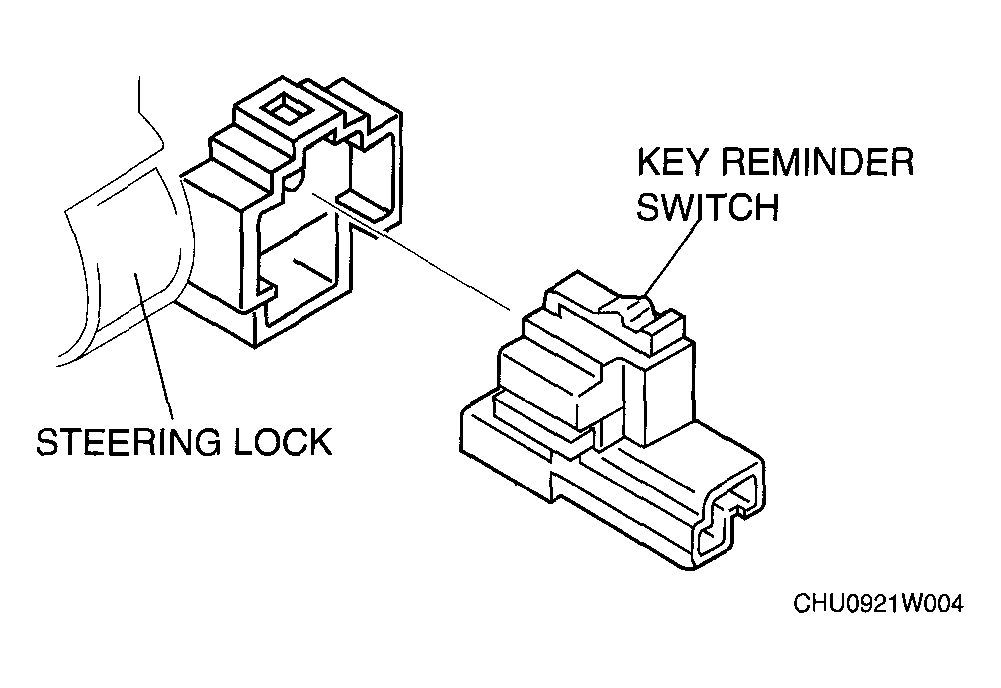

    Fig 1: Removing/Installing Key Reminder Switch
    G04323807Courtesy of MAZDA MOTORS CORP.
