Upper Block Removal/Installation: Notes

  1. Remove the battery cover.
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
  3. Remove the main fuse block cover.
  4. Remove in the order indicated in Fig 1 .
  5. Install in the reverse order of removal.

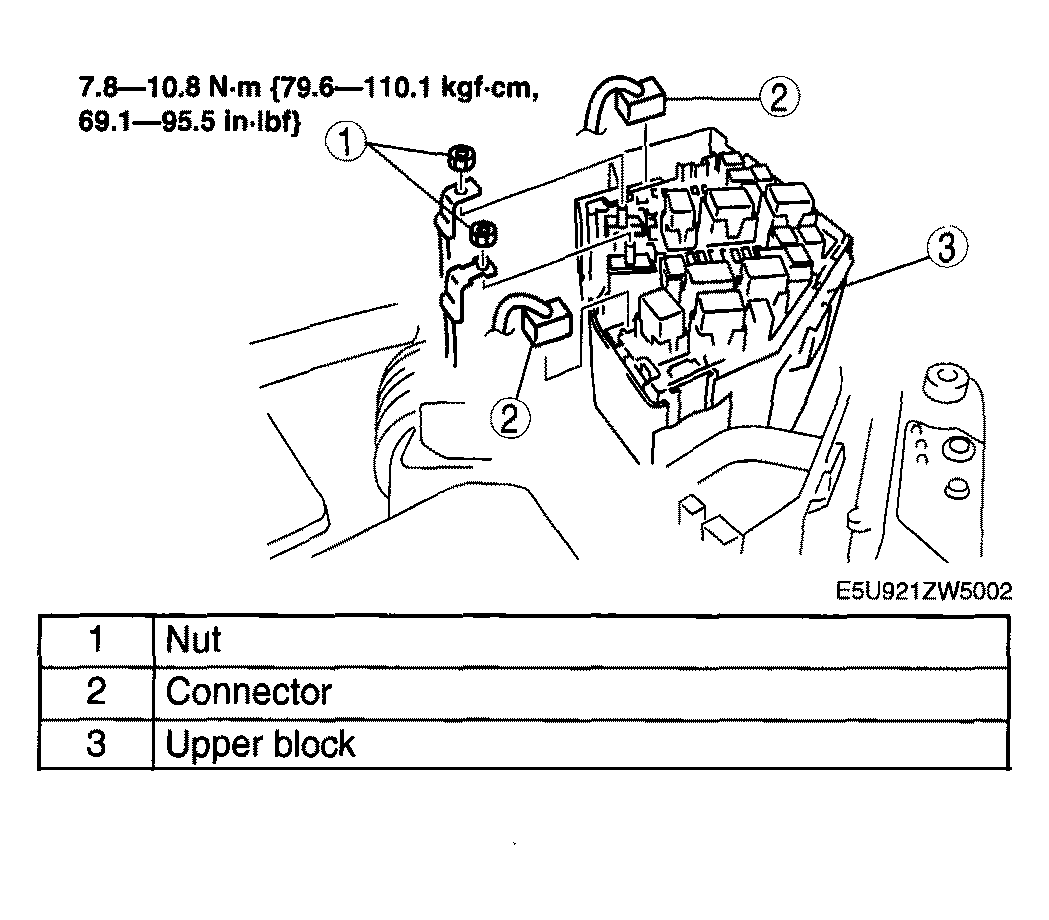

    Fig 1: View Of Upper Block Components With Torque Specifications
    G04323801Courtesy of MAZDA MOTORS CORP.
