Upper Block Removal Note
Press and remove the tabs on upper block at the positions indicated by the arrows.
Raise the upper block and remove it.

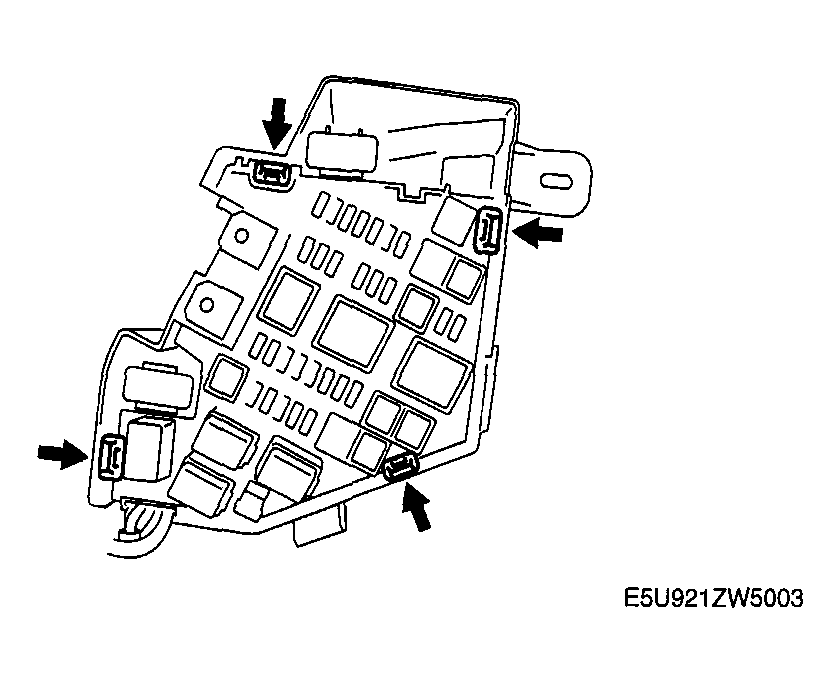

Fig 1: Removing Upper Block
Courtesy of MAZDA MOTORS CORP.
