Driver's Side

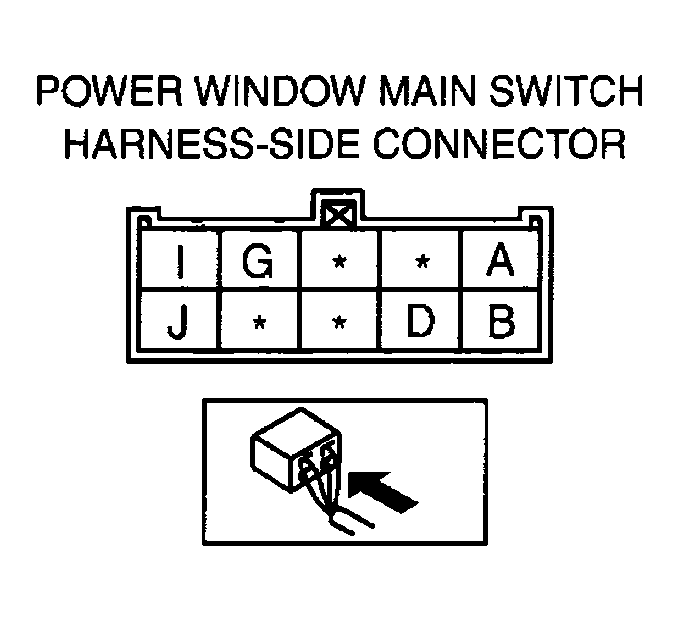

- Measure the voltage at each terminal (other than terminal J).
- If the voltage is not as specified in the TERMINAL VOLTAGE TABLE , inspect the parts under "Inspection item (s)" and related wiring harnesses.
- Remove the battery cover.
- Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
- Inspect the power window main switch connector for continuity at terminal J.
- If the system does not work properly even though the inspection items or related wiring harnesses do not have any malfunction, replace the power window main switch.
TERMINAL VOLTAGE TABLE
| Terminal | Signal name | Connected to | Measured condition | Voltage (V)/Continuity | Inspection Item (s) |
|---|---|---|---|---|---|
| B | Open output | Power window motor | While door glass is opening | B+ |
|
| While door glass is closing | 1.0 or less | ||||
| G | Close output | Power window motor | While door glass is opening | 1.0 or less |
|
| While door glass is closing | B+ | ||||
| I | Power supply | P/WIND 20A fuse | Ignition switch at ON | B+ |
|
| J | GND | Body ground | Under any condition: Inspect for continuity to ground | Continuity detected |
|
