Power Window Main Switch Removal/Installation

  1. Remove the battery cover.
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
  3. Remove the console. (See CONSOLE REMOVAL/INSTALLATION .)
  4. Depress the tab and remove the power window main switch.
  5. Install in the reverse order of removal.

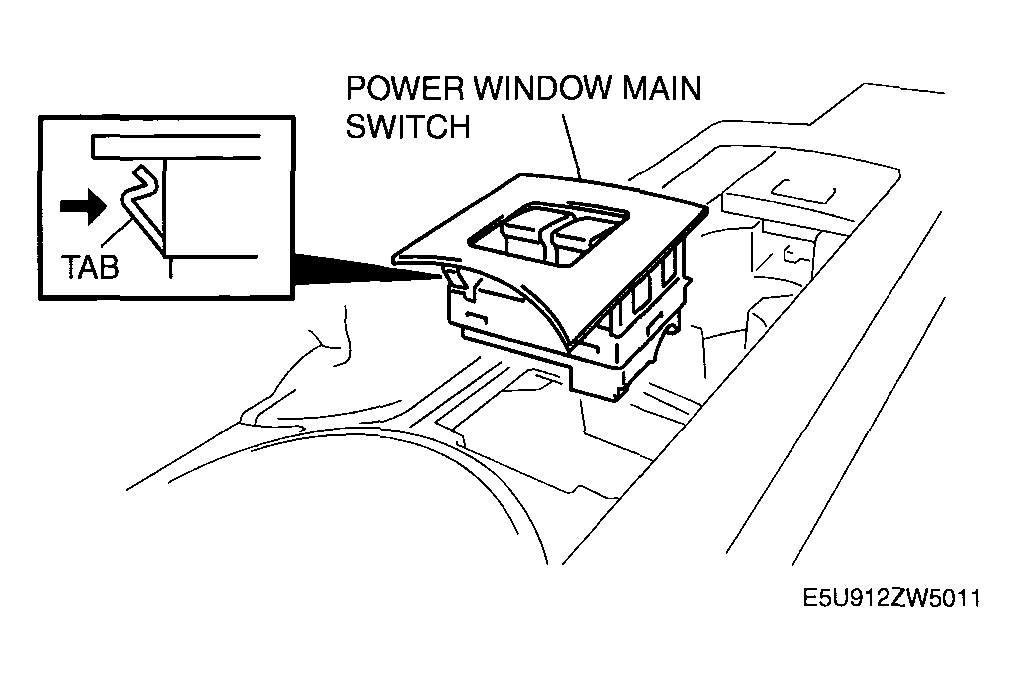

    Fig 1: Removing Power Window Main Switch
    G04323444Courtesy of MAZDA MOTORS CORP.
