Power Window Regulator Disassembly/Assembly: Notes

POWER WINDOW REGULATOR COMPONENTS TABLE

1	Cover (See COVER DISASSEMBLY NOTE
2	Power window motor
3	Frame

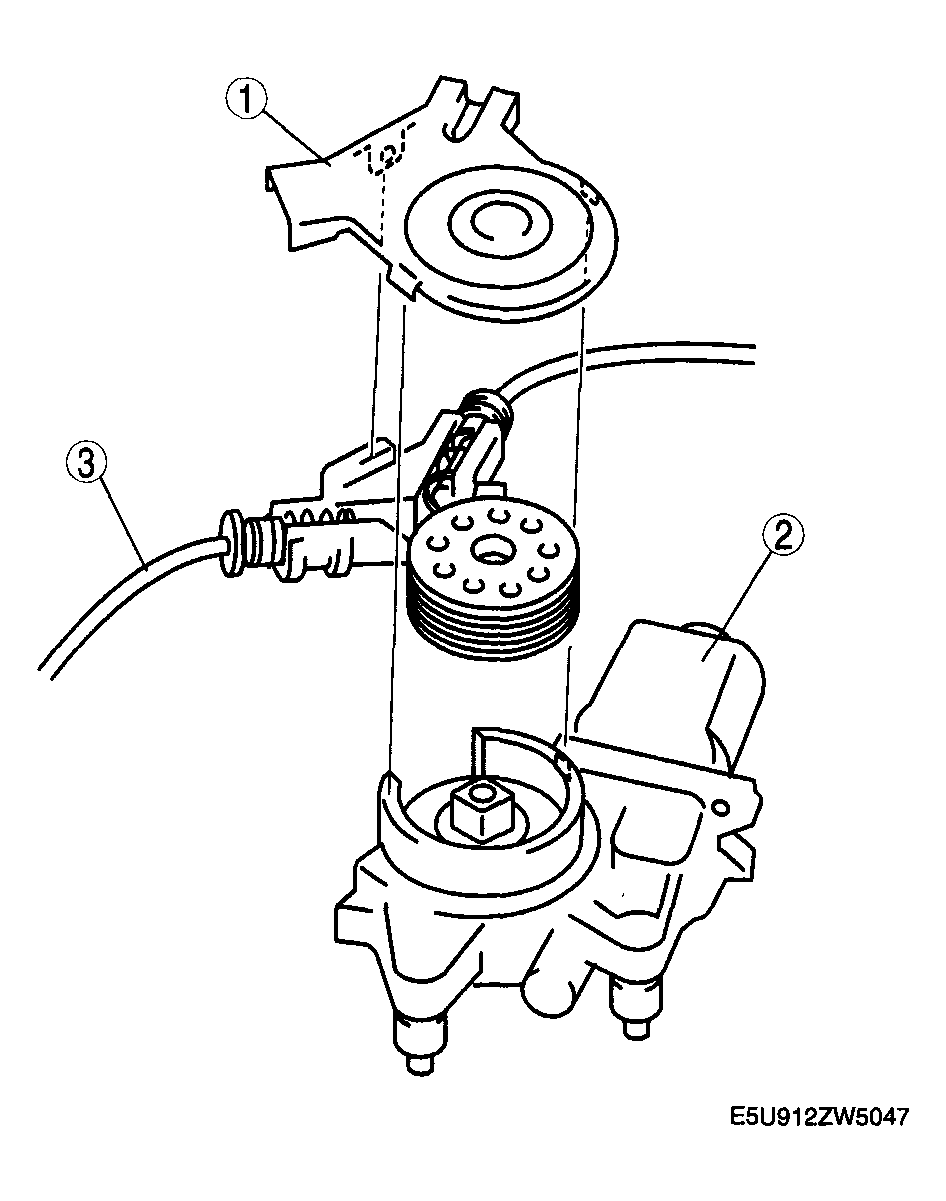

Fig 1: Disassembling/Assembling Power Window Regulator

Courtesy of MAZDA MOTORS CORP.

Assemble in the reverse order of disassembly.
NOTE:
- When installing the power window motor, be careful that the cable does not become unwounded from the drum.
