Not Reusing Windshield

NOTE:

For the areas of the sealant that are difficult to cut, use the SST (piano wire) and follow the procedure under Reusing Windshield .

WARNING:

Using the SST (piano wire) with bare hands can cause injury. Always wear gloves when using the SST (piano wire).

Cut out the sealant all around the glass using a sealant remover.

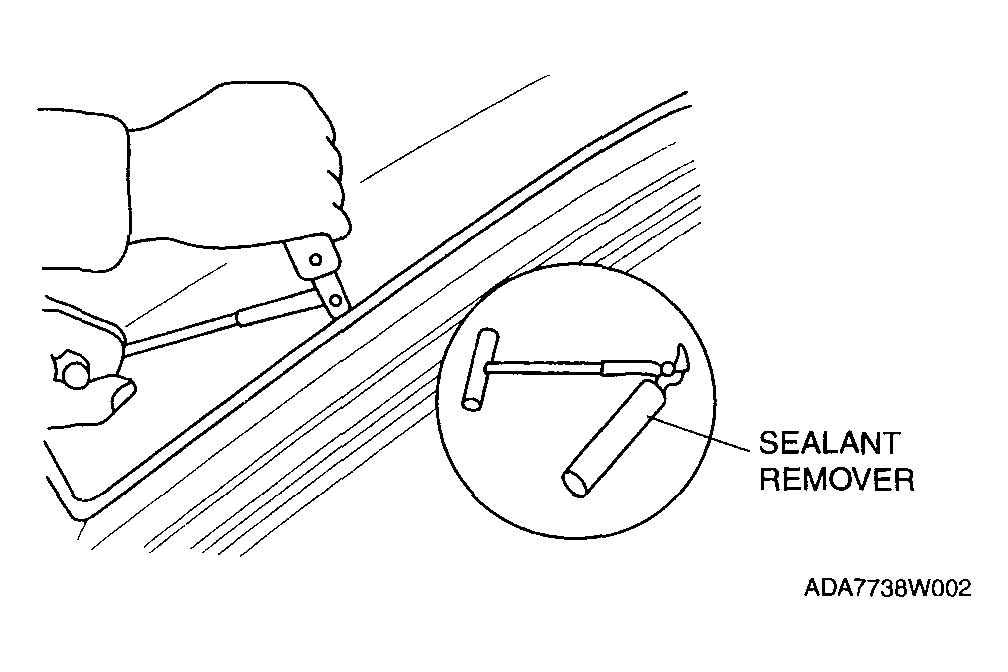

Fig 1: Cutting Glass Sealant

G04317160

Courtesy of MAZDA MOTORS CORP.

Remove the windshield.
