Rear Abs Wheel-Speed Sensor Removal/Installation

  1. Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION .)
  2. Remove the partition board. (See PARTITION BOARD REMOVAL/INSTALLATION .)
  3. Remove the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
  4. Remove the fuel-filler pipe protector. (See FUEL TANK REMOVAL/INSTALLATION [LF] .)
  5. Remove in the order indicated in Fig 1 .
  6. Install in the reverse order of removal.

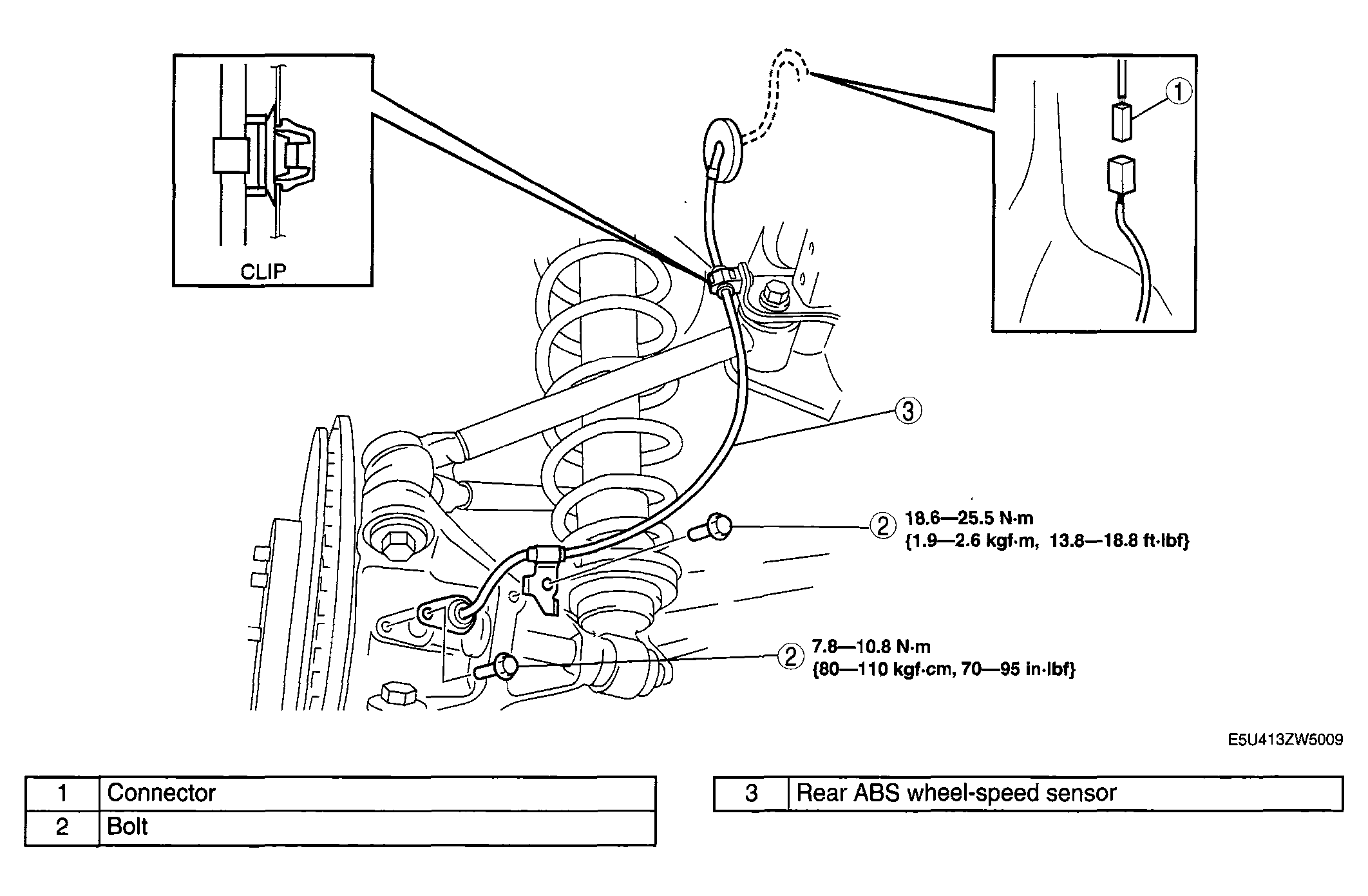

    Fig 1: Rear ABS Wheel-Speed Sensor Removing/Installing Steps With Torque Specifications
    G04318428Courtesy of MAZDA MOTORS CORP.
