Ignition Coil Removal/Installation

  1. Remove the battery cover.
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
  3. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
  4. Remove the front suspension tower bar (joint). (See FRONT SUSPENSION TOWER BAR REMOVAL/INSTALLATION .)
  5. Remove in the order indicated in Fig 1 .
  6. Install in the reverse order of removal.

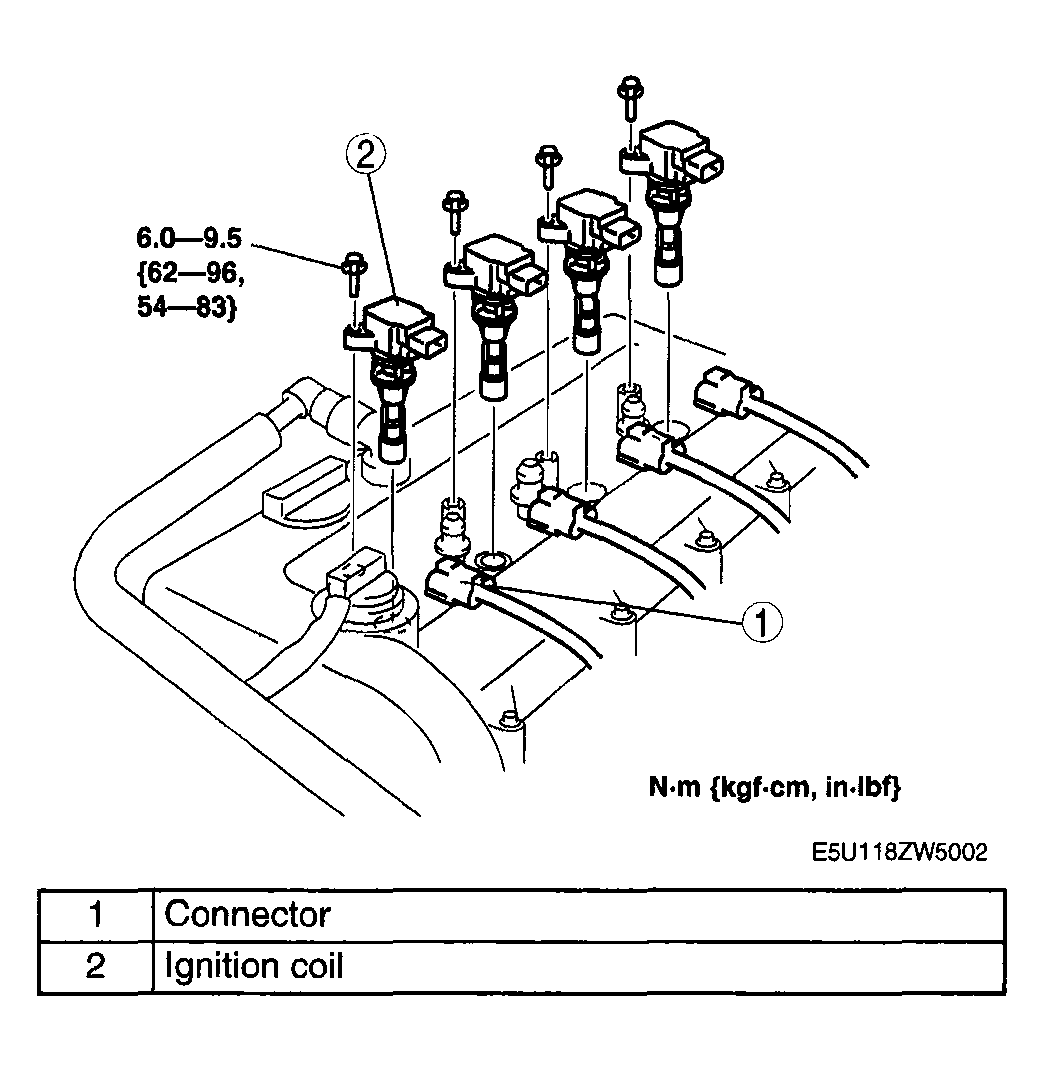

    Fig 1: Removal Order Of Ignition Coil With Torque Specifications
    G04318027Courtesy of MAZDA MOTORS CORP.
