Buckle Removal/Installation

  1. Turn the ignition switch to the LOCK position.
  2. Remove the battery cover.
  3. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
  4. Remove the seat. (See SEAT REMOVAL/INSTALLATION .)
  5. Detach the tab as shown in Fig 1 and remove the connector from the seat connector.

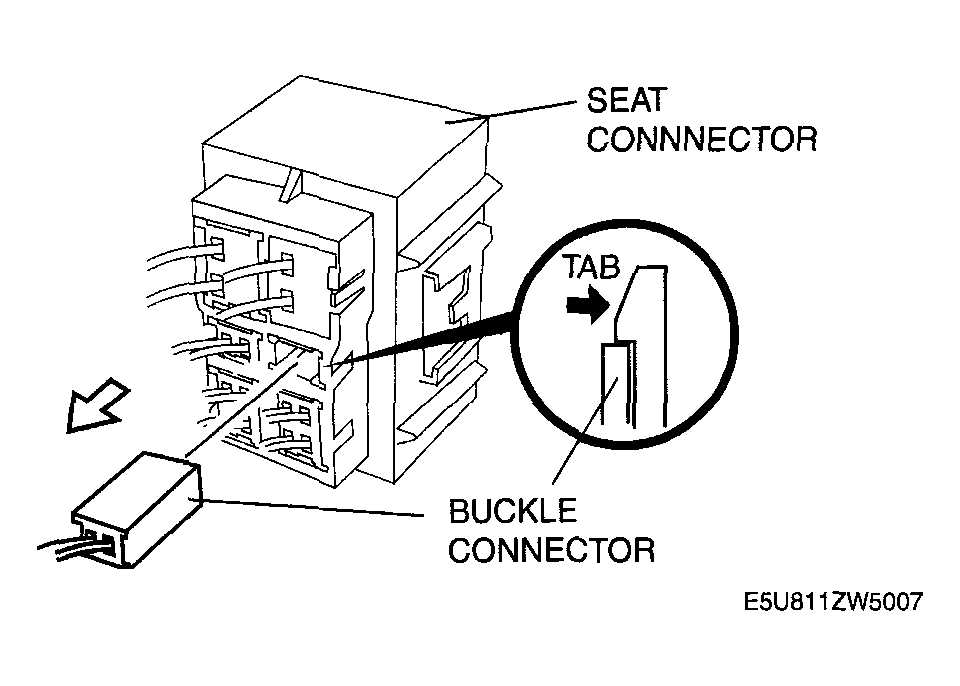

    Fig 1: Removing Buckle Connector From Seat Connector
    G04323288Courtesy of MAZDA MOTORS CORP.
  6. Remove in the order indicated in Fig 2.

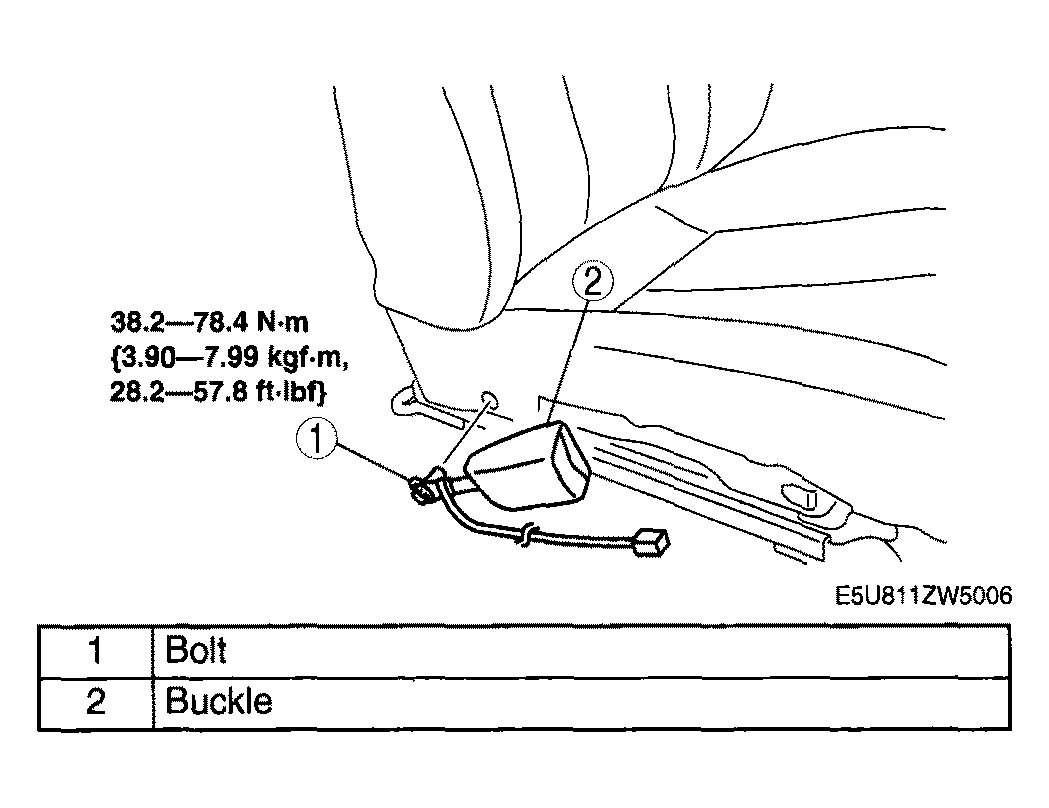

    Fig 2: View Of Bolt And Buckle With Torque Specifications
    G04323289Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
