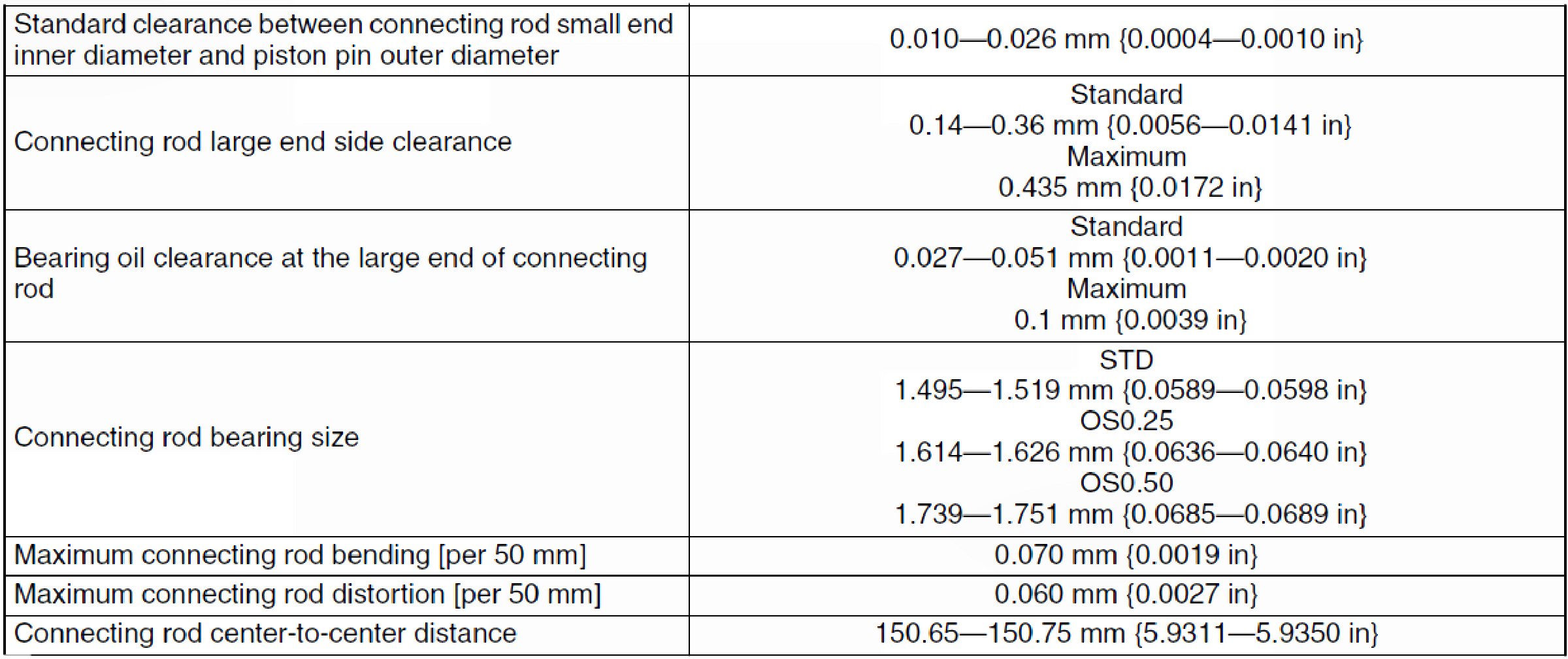

Connecting Rod, Engine








Specifications

Connecting Rod Nut/Bolt
Torque 26 - 31 Nm (19.2 - 22.8 ft lbf) + 80° - 100°
