Control System Location Index

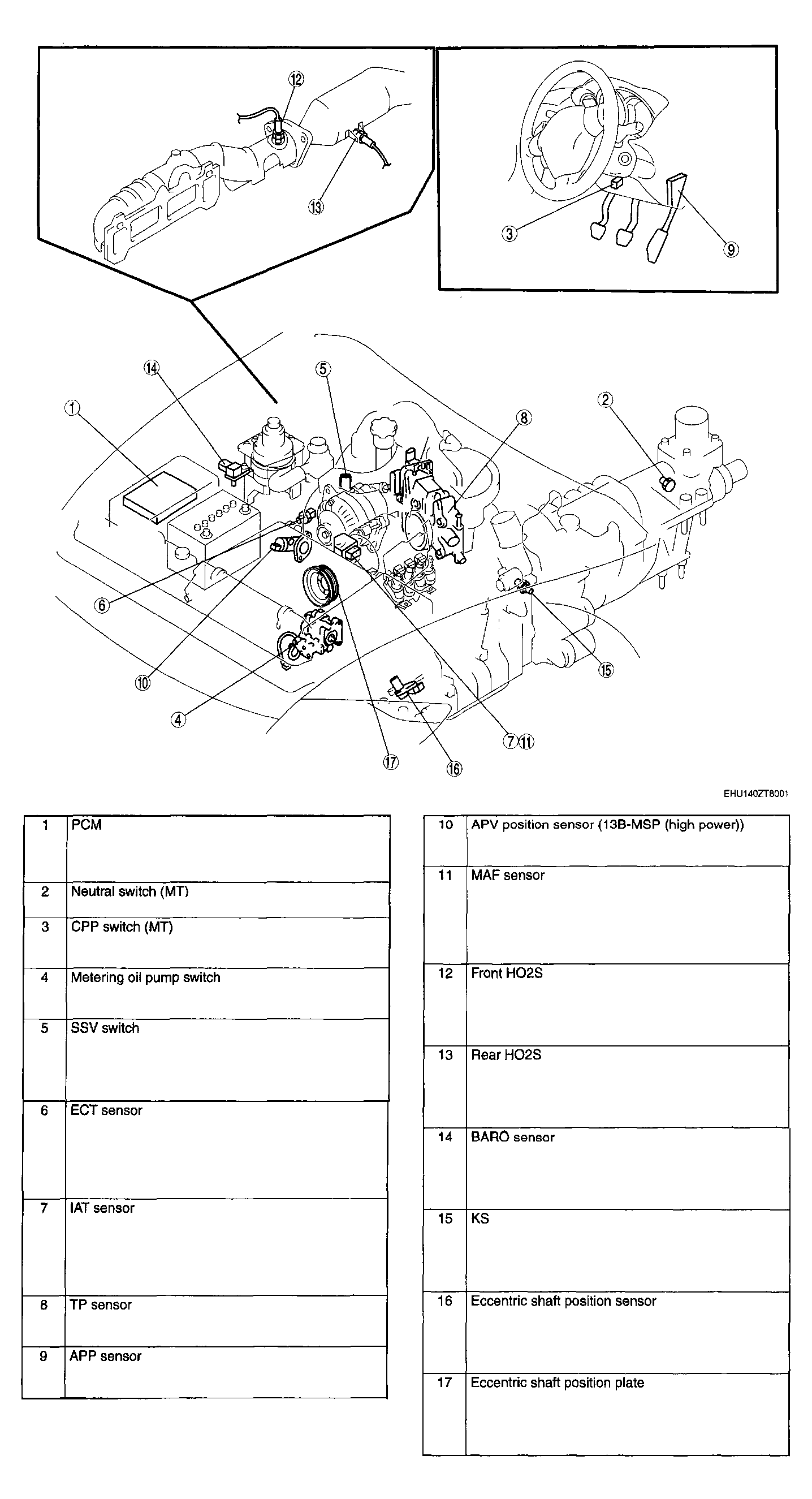

Fig 1: Identifying Control System Location
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
