Front Safety Belt Retractor: Notes

NOTE:
  • The passenger-side is shown, the driver-side is similar.

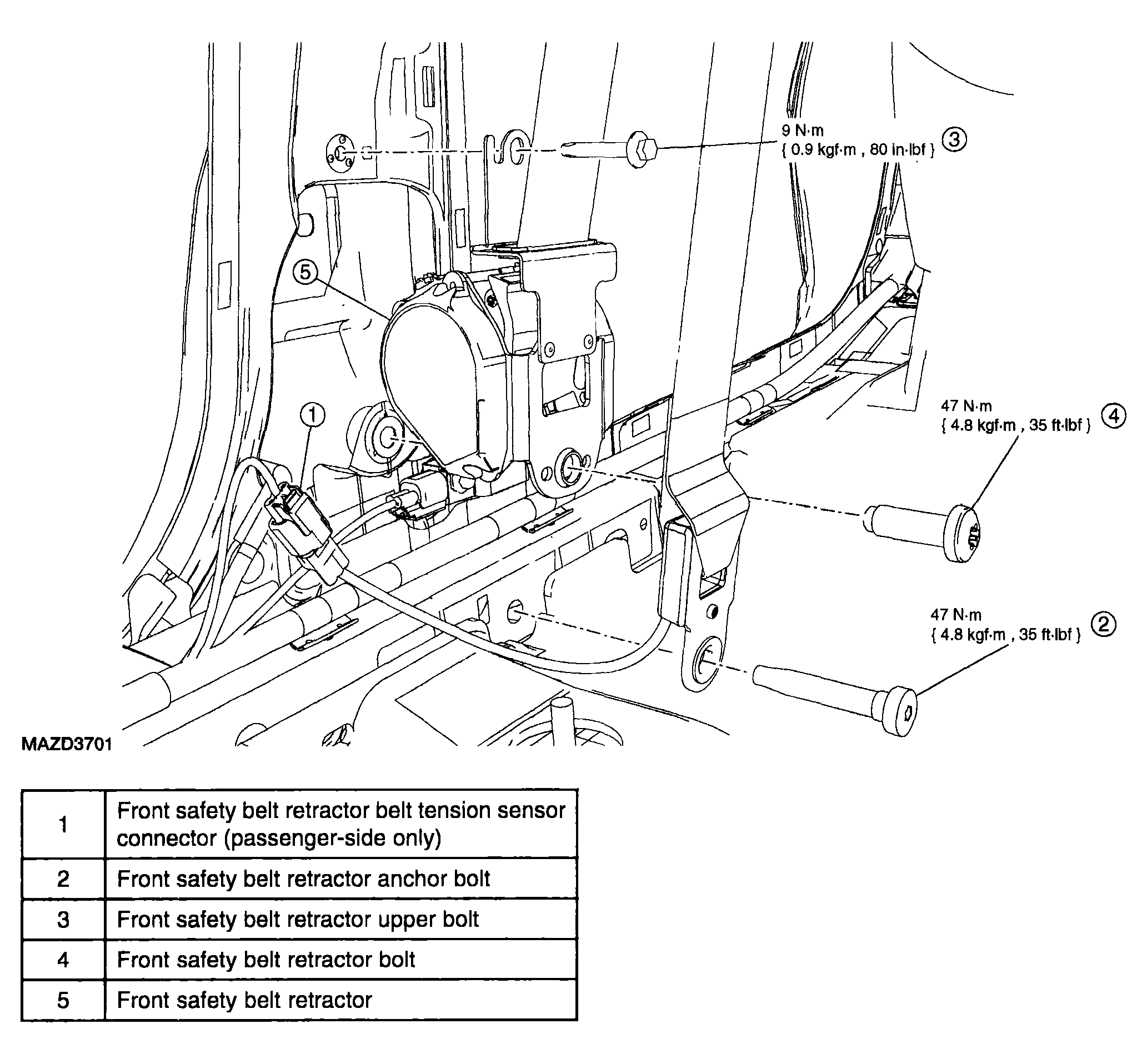

    Fig 1: Front Safety Belt Retractor With Torque Specifications
    G04322343Courtesy of MAZDA MOTORS CORP.
