Steering Control Module: Testing and Inspection

ELECTRO HYDRAULIC POWER ASSIST STEERING (EHPAS) CONTROL MODULE INSPECTION [LF, L3]

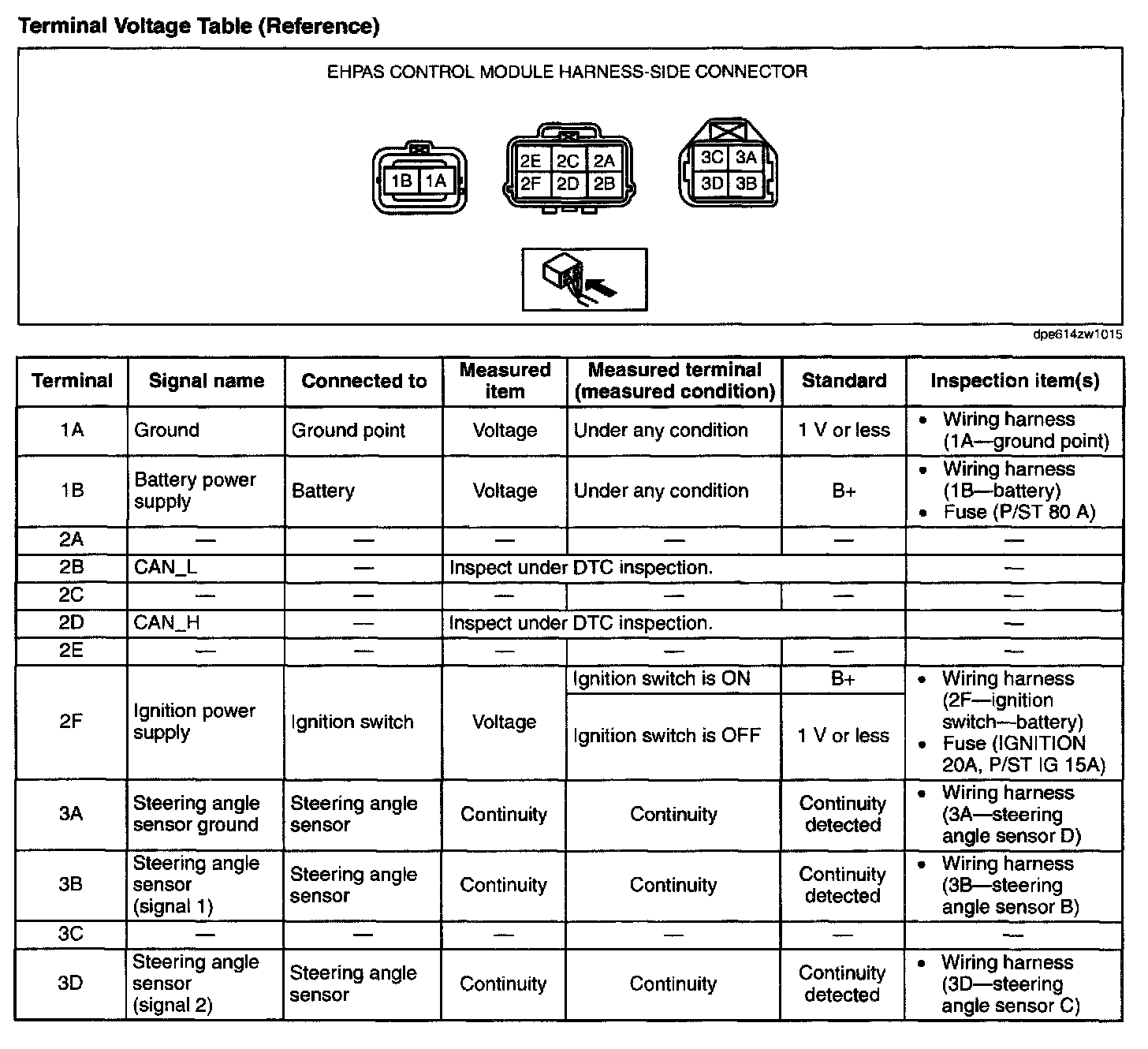

Terminal Voltage Table:
