Circuit Open Short Inspection: Notes

Fig 1: Identifying MAF/IAT Sensor Connector Terminals
G04955330Courtesy of MAZDA MOTORS CORP.

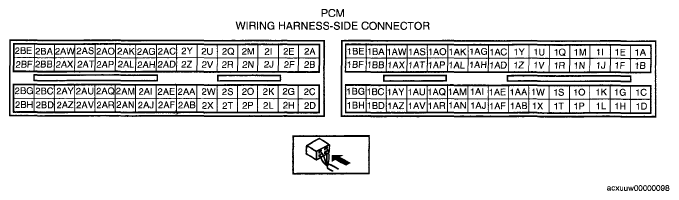

Fig 2: PCM Connector Terminal Identification
G04955331Courtesy of MAZDA MOTORS CORP.
  1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION ).
  2. Inspect the following wiring harnesses for an open or short circuit. (Continuity check)
