Open circuit

If there is no continuity in the following wiring harnesses, there is an open circuit. Repair or replace the wiring harness.
- Neutral switch terminal A and PCM terminal 1S
- Neutral switch terminal B and body ground

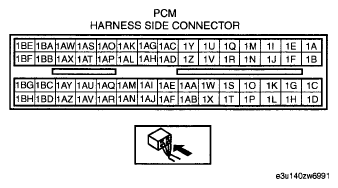

  Fig 1: PCM Connector Terminal Identification
  Courtesy of MAZDA MOTORS CORP.
