Continuity Inspection

  1. Remove the neutral switch. (See NEUTRAL SWITCH REMOVAL/INSTALLATION .)
  2. Verify that the continuity between neutral switch terminals A and B is as indicated in the table.
    • If it can be verified, perform the "CIRCUIT OPEN/SHORT INSPECTION ".
    • If it cannot be verified, replace the neutral switch.

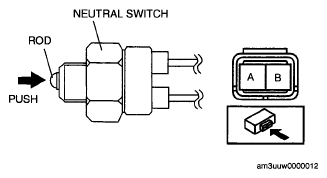

      Fig 1: Identifying Neutral Switch Connector Terminals
      G04955310Courtesy of MAZDA MOTORS CORP.
    CONTINUITY REFERENCE

    Measured condition Continuity
    Rod pushed Continuity detected
    Except above No continuity
