Door Lock-link Switch

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the door lock actuator connector.
Inspect for continuity between the door lock-link switch terminals.
- If not as specified, replace the door lock actuator.
Fig 1: Door Lock-Link Switch Continuity Chart
Courtesy of MAZDA MOTORS CORP.

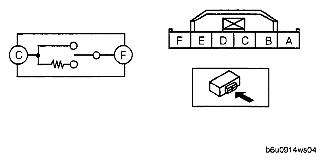

Fig 2: Identifying Door Lock-Link Switch Connector Terminals With Circuit
Courtesy of MAZDA MOTORS CORP.
