Circuit Open/Short Inspection: Notes

Fig 1: Identifying Variable Tumble Shutter Valve Switch Connector Terminals
G04955229Courtesy of MAZDA MOTORS CORP.
  1. Disconnect the PCM connector.

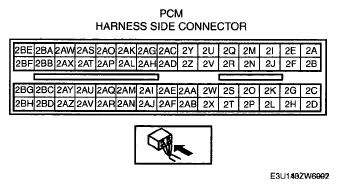

    Fig 2: PCM Connector Terminal Identification
    G04954739Courtesy of MAZDA MOTORS CORP.
  2. Inspect the following harness for an open or short wiring. (Continuity inspection)
