Sliding Door Module Removal/Installation

SLIDING DOOR MODULE REMOVAL/INSTALLATION

1. Remove the battery cover.
2. Disconnect the negative battery cable.
3. Remove the following parts:
1. Side door garnish
2. Rear side trim
3. Sliding door trim
4. Sliding door glass
5. Sliding door remote controller






4. Disconnect the power window motor connector.

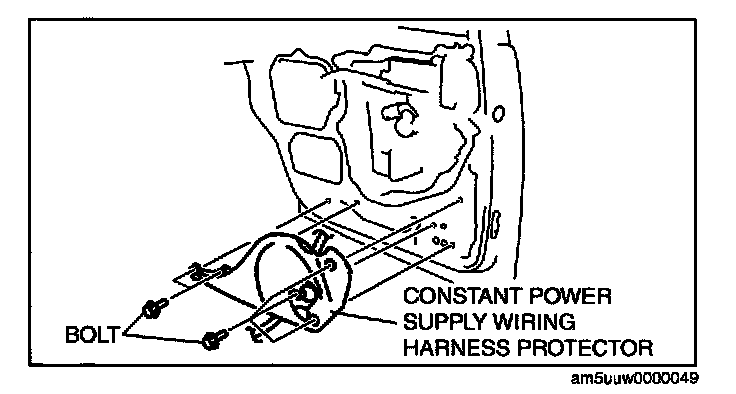

5. Remove the bolts, then remove the constant power supply wiring harness protector.

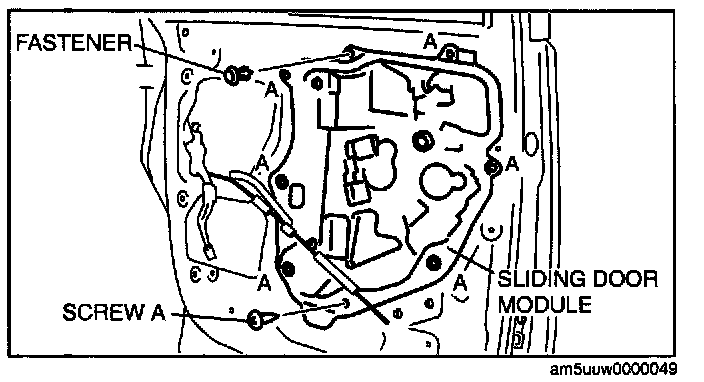

6. Remove screws A and the fastener.
7. Remove the sliding door module.
8. Install in the reverse order of removal.
