Body Control Module (BCM) Removal/Installation

  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3] ).
  2. Disconnect the negative battery cable.
  3. Remove in the order indicated in the table.

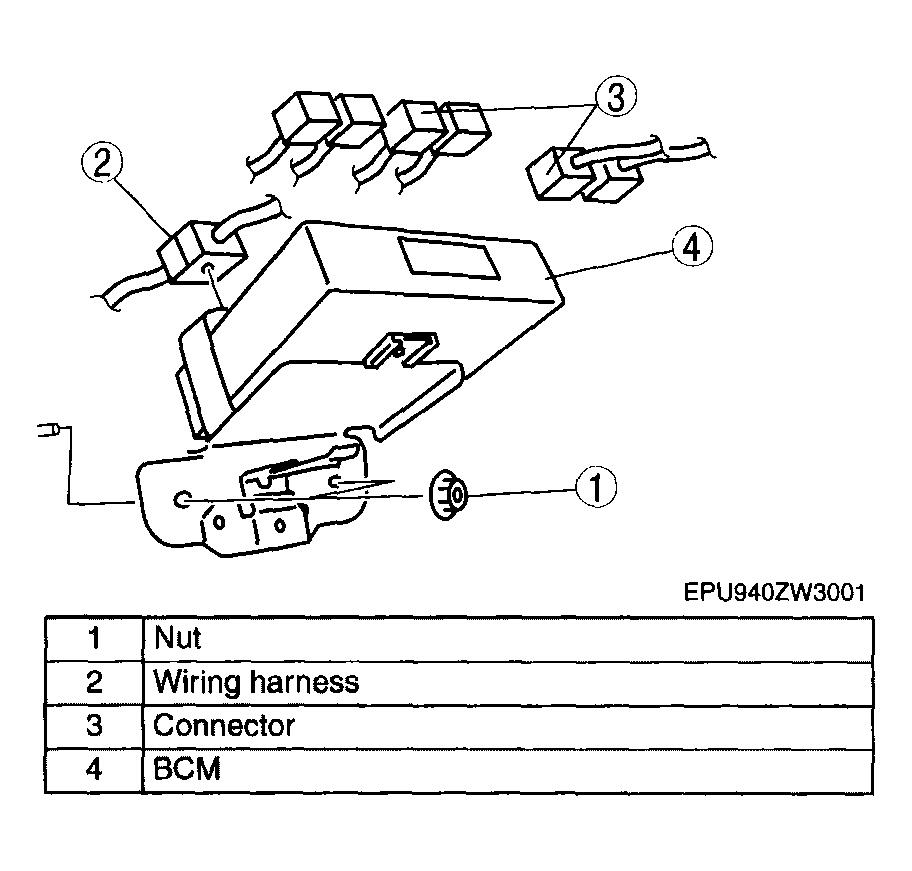

    Fig 1: Removing/Installing Body Control Module (BCM)
    G04317571Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
