Control System Diagram

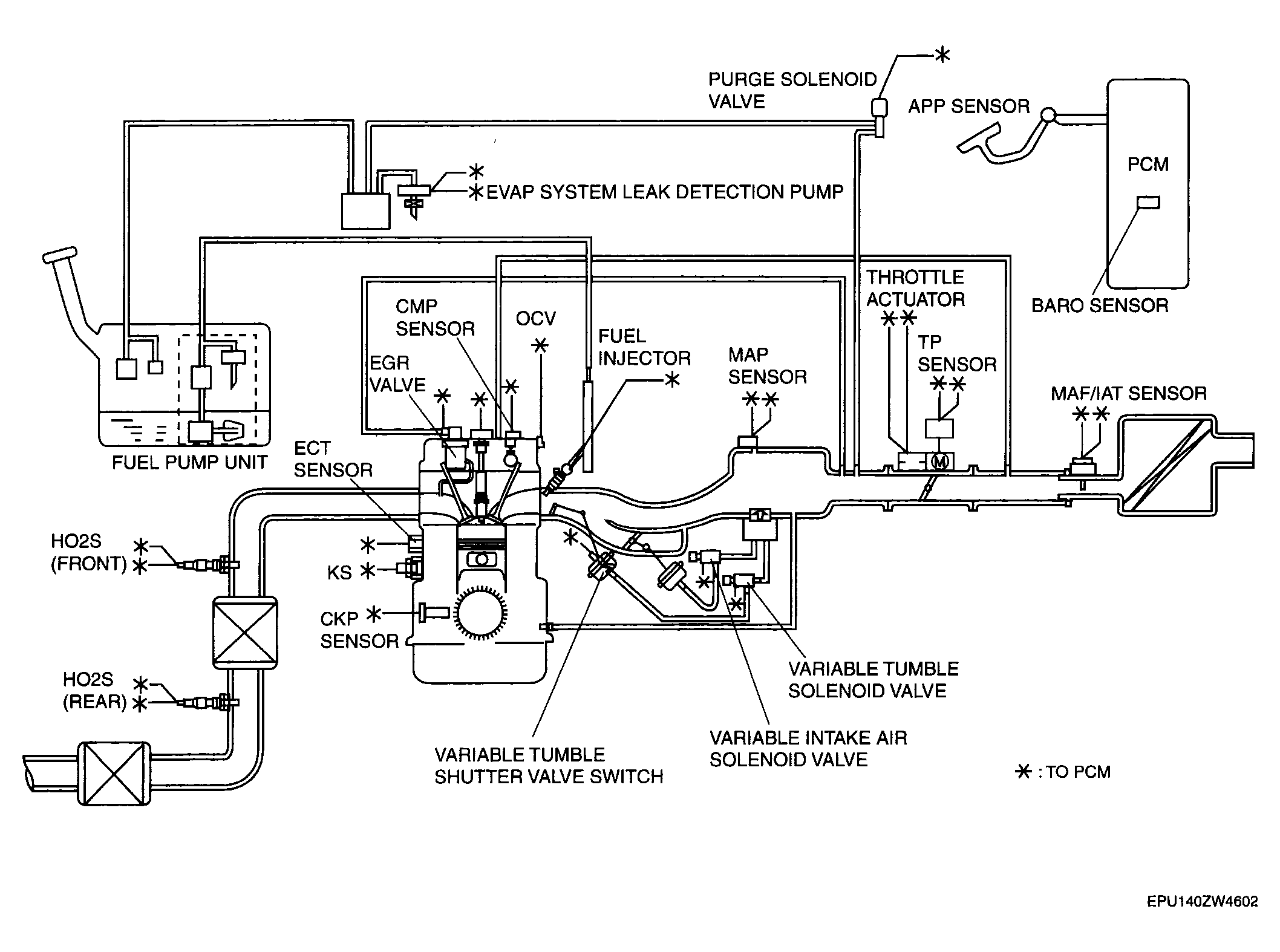

Fig 1: Control System Diagram [L3]
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
