Continuity Inspection

  1. Remove the neutral switch. (See NEUTRAL SWITCH REMOVAL/INSTALLATION ).
  2. Verify that the continuity between neutral switch terminals A and B is as indicated in the table.
    • If it can be verified, perform the "Circuit Open/Short Inspection".
    • If it cannot be verified, replace the neutral switch.

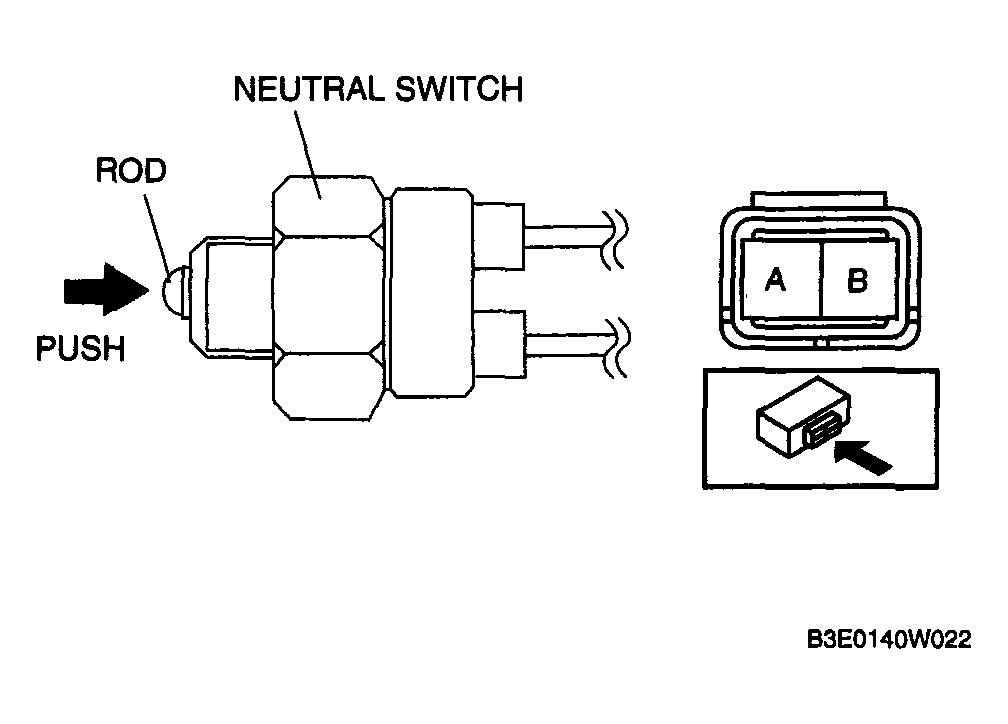

      Fig 1: Checking Continuity Between Neutral Switch Terminals A And B
      G04316080Courtesy of MAZDA MOTORS CORP.
      TERMINALS CONTINUITY CHART

      Measured condition Continuity
      Rod pushed Continuity detected
      Except above No continuity
