DTC P0223: Notes
DTC P0223 DETECTION CONDITION AND POSSIBLE CAUSES
| DTC P0223 |
TP sensor No. 2 circuit high input |
| DETECTION CONDITION |
- The PCM monitors the input voltage from TP sensor No. 2 when the engine is running. If the input voltage is above 4.85 V
, the PCM determines that the TP sensor No. 2 circuit input voltage is high.
Diagnostic support note
- This is a continuous monitor (CCM).
- MIL illuminates if the PCM detects the above malfunction condition in the first drive cycle.
- FREEZE FRAME DATA is available.
- The DTC is stored in the PCM memory.
|
| POSSIBLE CAUSE |
- TP sensor No. 2 malfunction
- Connector or terminal malfunction

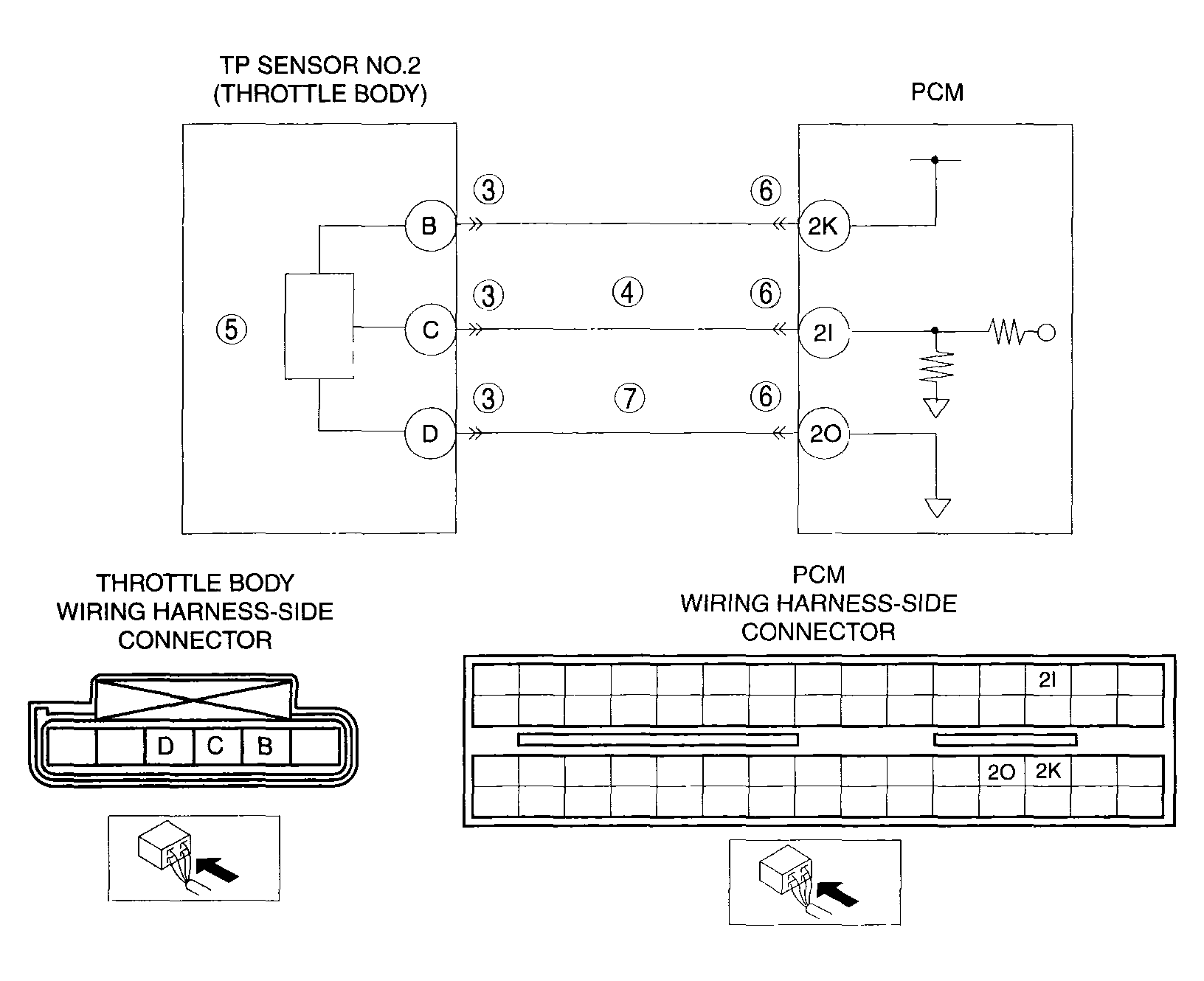

- Short to power supply in wiring harness between throttle body terminal C and PCM terminal 21
- Open circuit in wiring harness between throttle body terminal D and PCM terminal 20
- PCM malfunction
|
|
|
