Control Module Pinout Values

ABS/TCS HU/CM INSPECTION

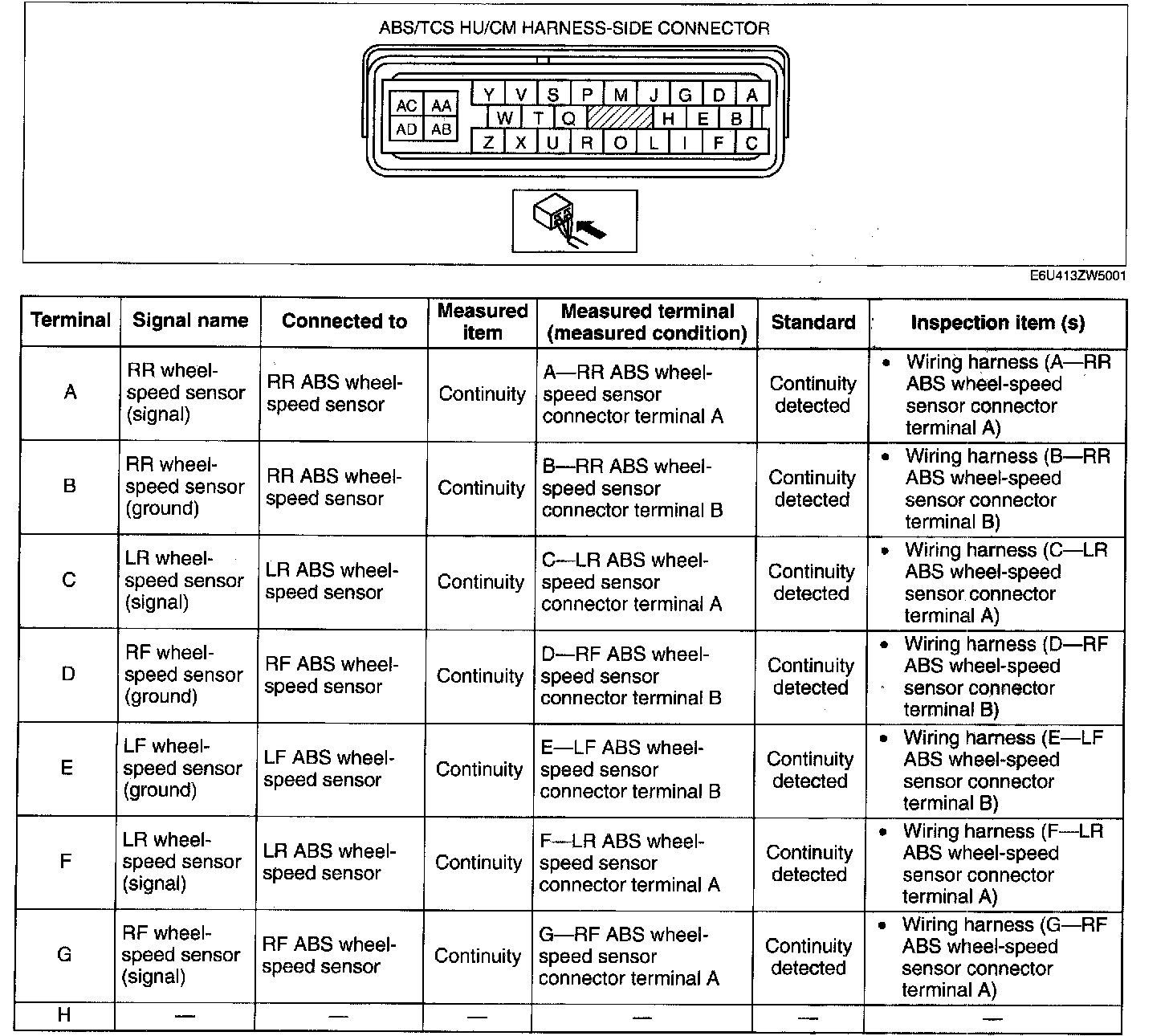

Terminal Voltage Table (Reference):

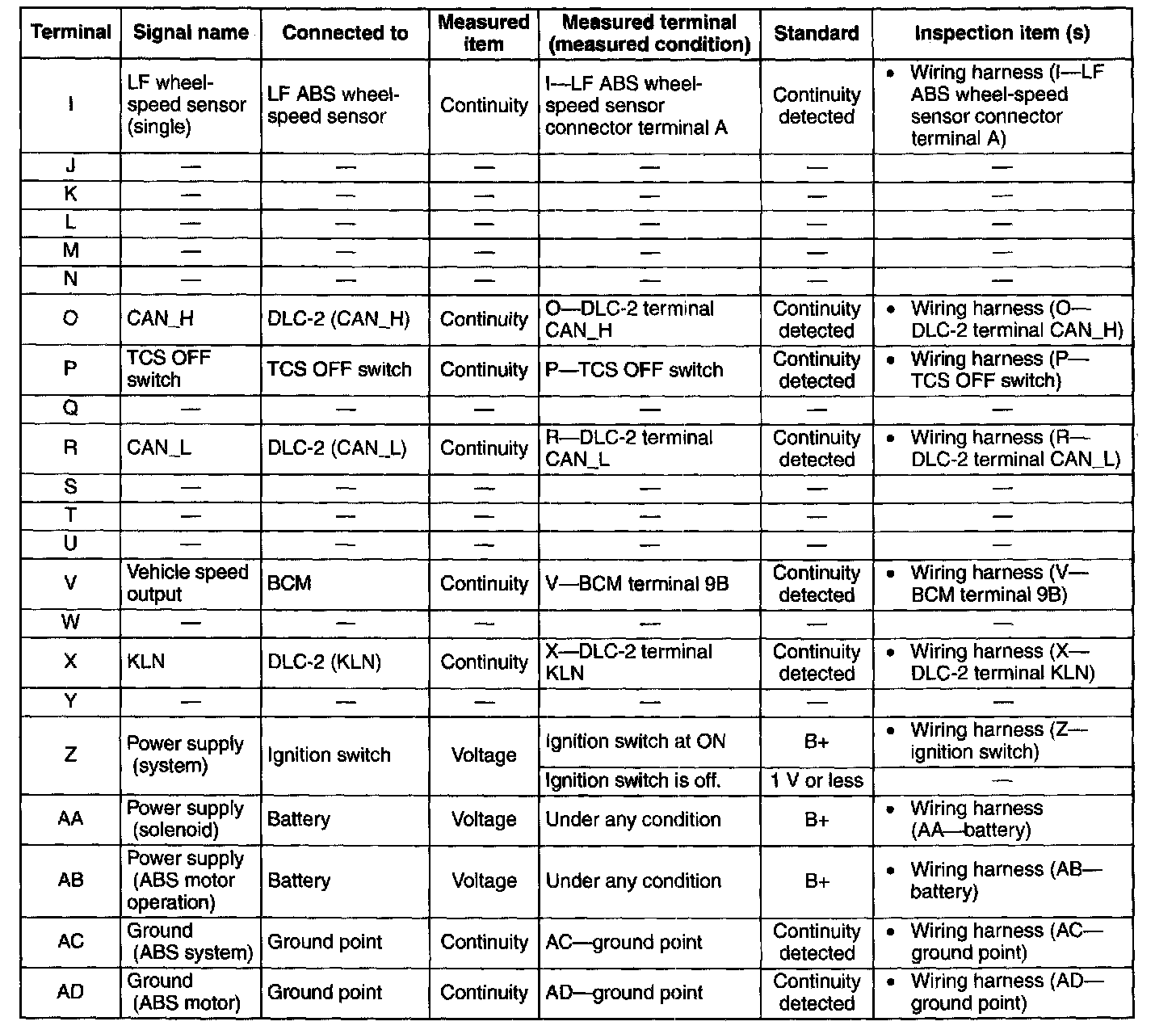

Terminal Voltage Table (Reference):

1. Disconnect the ABS/TCS HU/CM connector.
2. Connect the negative battery cable.
3. Attach the tester lead to the ABS/TCS HU/CM wiring harness-side connector, then inspect the voltage, continuity, or resistance according to the standard (reference) on the table.
