Procedures

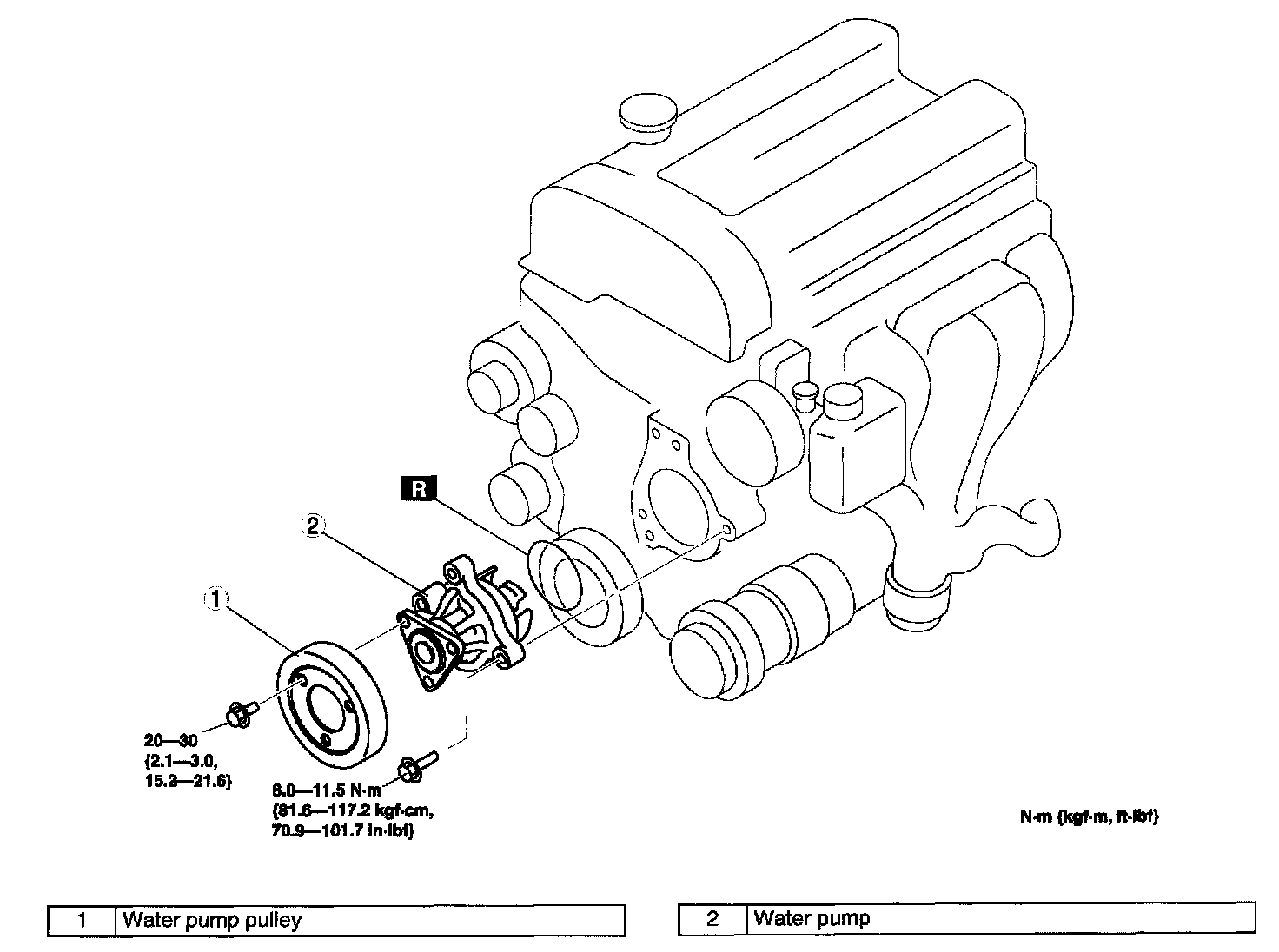

WATER PUMP REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Drain the engine coolant.
3. Remove the drive belt.
4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.





6. Add the engine coolant.
