Blower Motor: Service and Repair

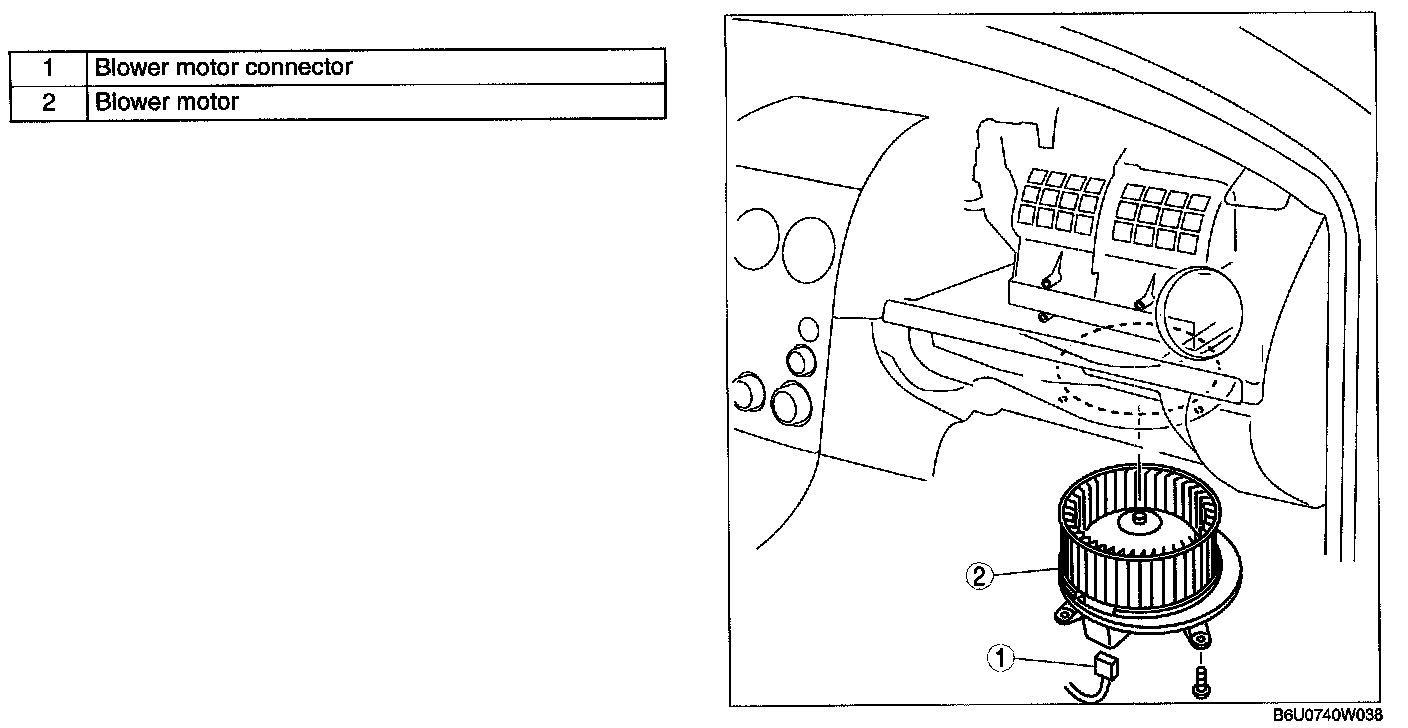

BLOWER MOTOR REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.




2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
