Discharge Headlight Control Module Removal/Installation

DISCHARGE HEADLIGHT CONTROL MODULE REMOVAL/INSTALLATION

CAUTION: Incorrect servicing of the discharge headlight control module Could result in electrical shock. Before servicing the discharge headlight control module, always refer to the "Discharge headlight service warnings. Service Precautions

1. Disconnect the negative battery cable.
2. Remove the front bumper.
3. Remove the front combination light.

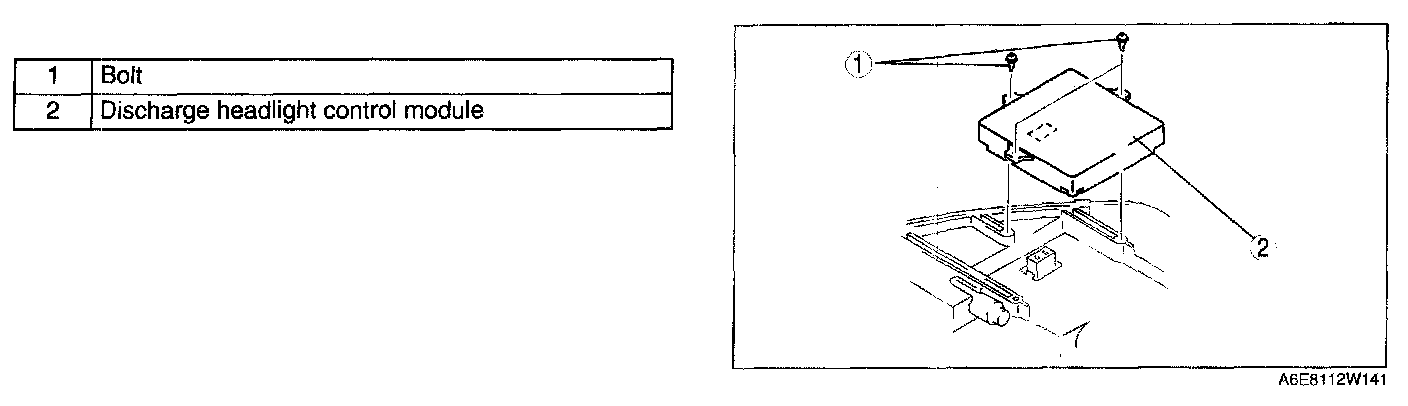

4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
