Timing Cover

Engine Front Cover

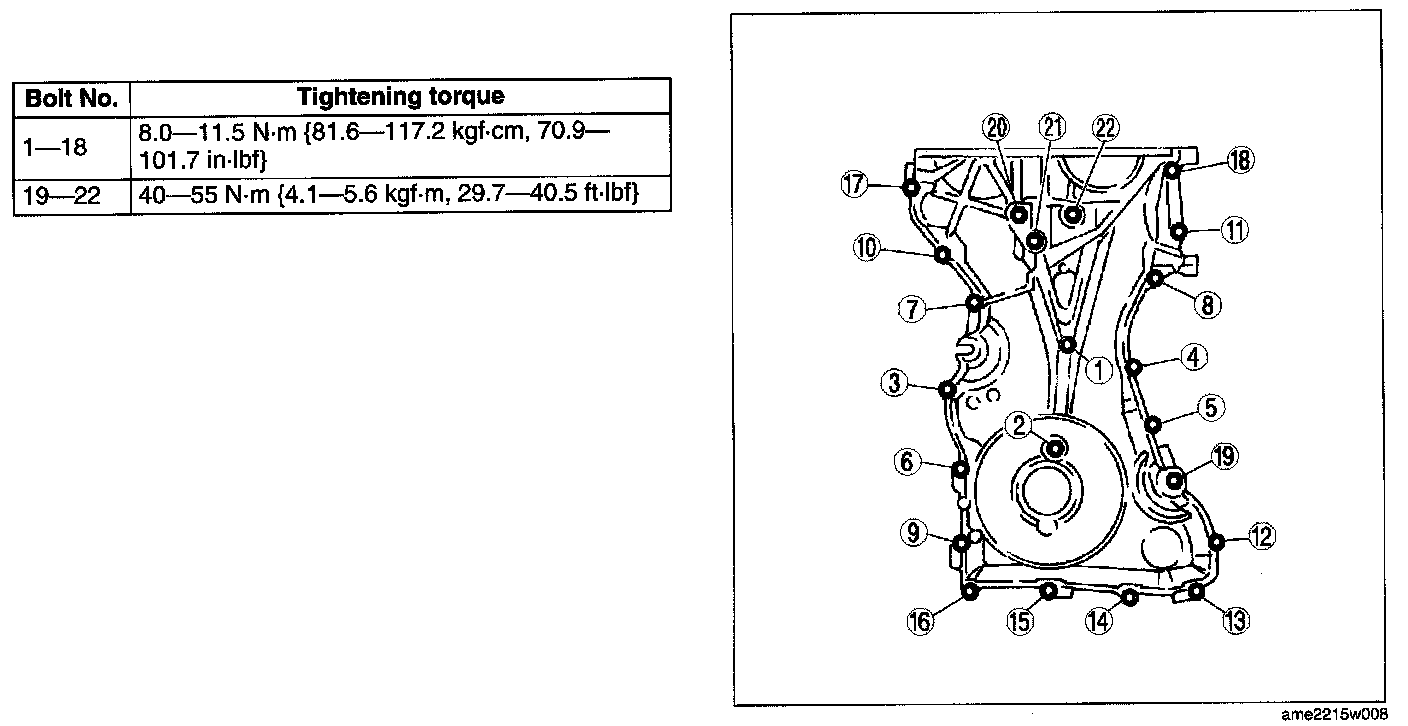

Install the engine front cover bolts in the order as shown in the figure.
