G35M-R Manual Transaxle Models

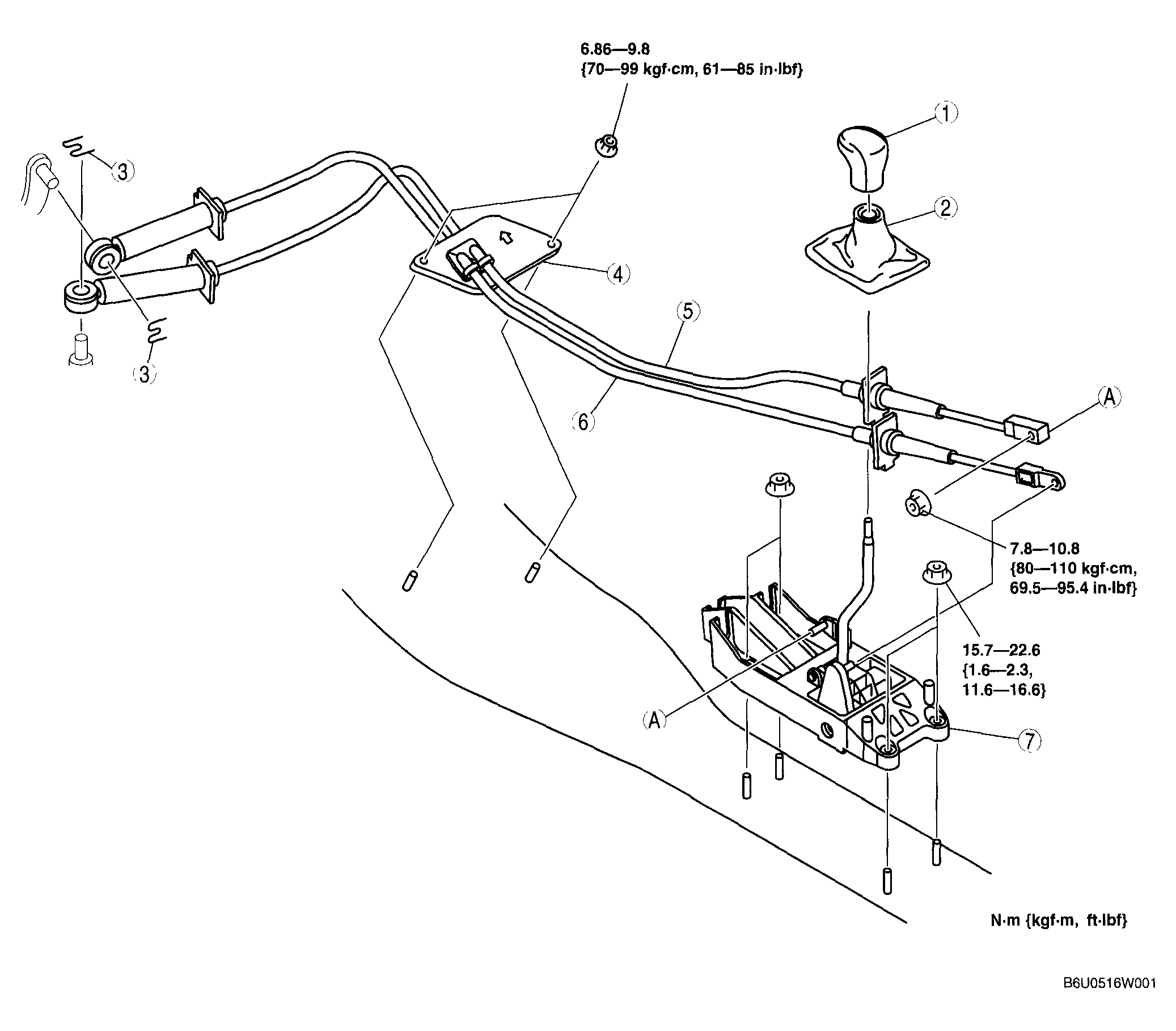

Fig 1: Removal/Installation Of Shift Mechanism & Torque Specification (G35M-R)
G04326195Courtesy of MAZDA MOTORS CORP.
