Select Cable Installation Note

Remove the center console.
Make sure that the shift lever (transaxle side) is in neutral.
Unlock the lock piece of the select cable (shift lever side) in the order shown in the figure.
G35M-R manual transaxle models

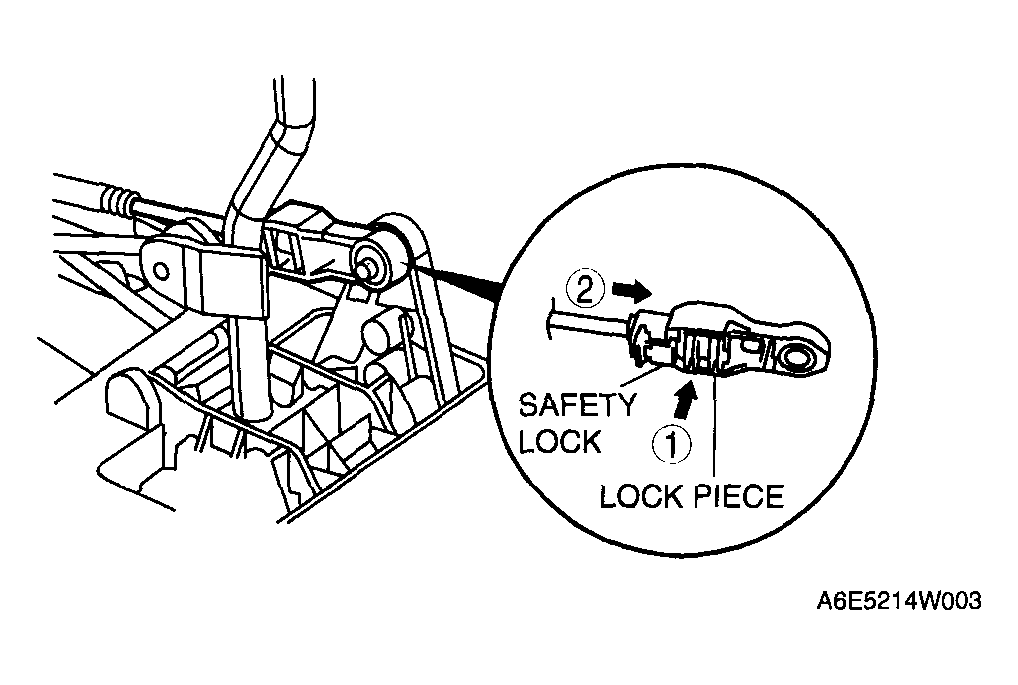

Fig 1: Installing Select Cable - G35M-R Manual Transaxle Models
Courtesy of MAZDA MOTORS CORP.

A65M-R manual transaxle models
Shift the shift lever to neutral.
Lock the lock piece of the selector cable (shift cable side) in the order shown in the figure.

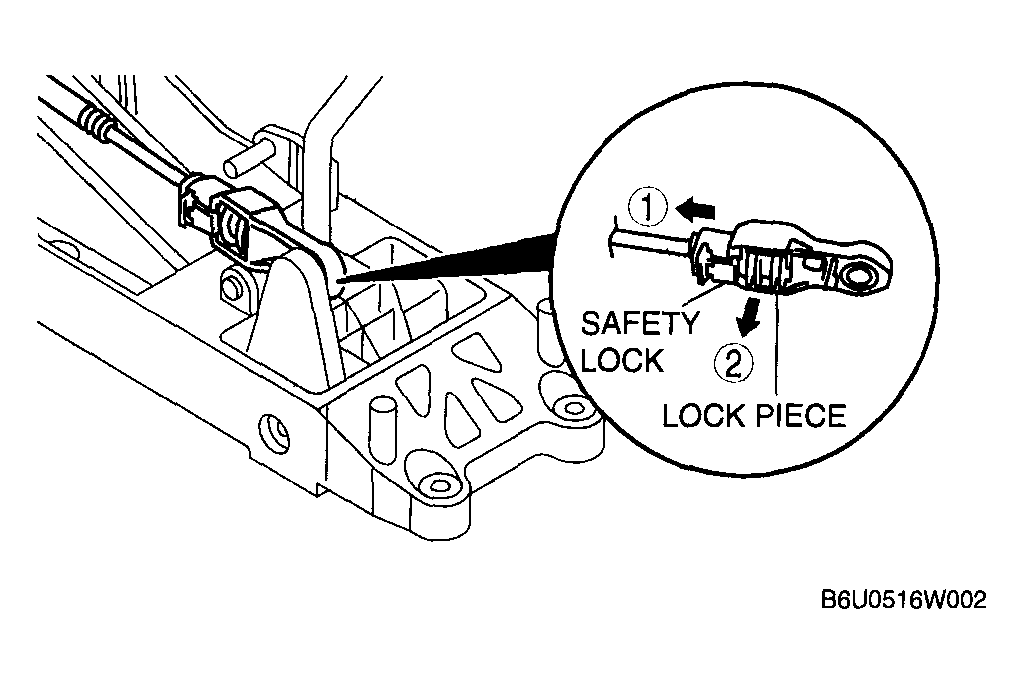

Fig 2: Installing Select Cable - A65M-R Manual Transaxle Models
Courtesy of MAZDA MOTORS CORP.

G35M-R manual transaxle models

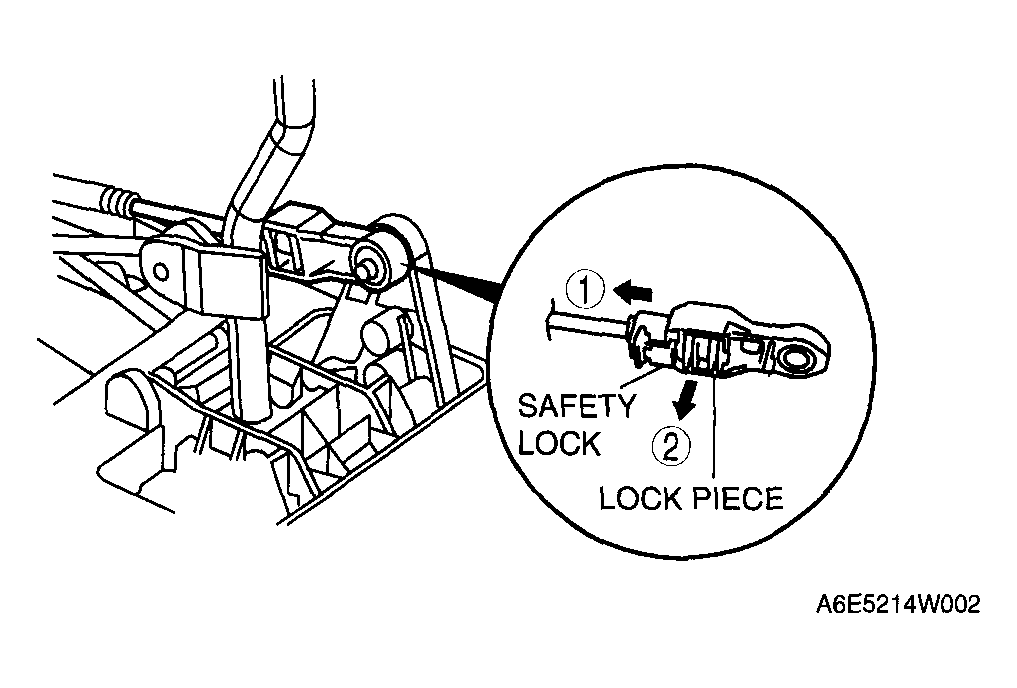

Fig 3: Installing Select Cable - G35M-R Manual Transaxle Models
Courtesy of MAZDA MOTORS CORP.

A65M-R manual transaxle models
Install the center console.
Shift the shift lever from neutral to other position, and make sure that there are no other components in that area to interfere with the lever.

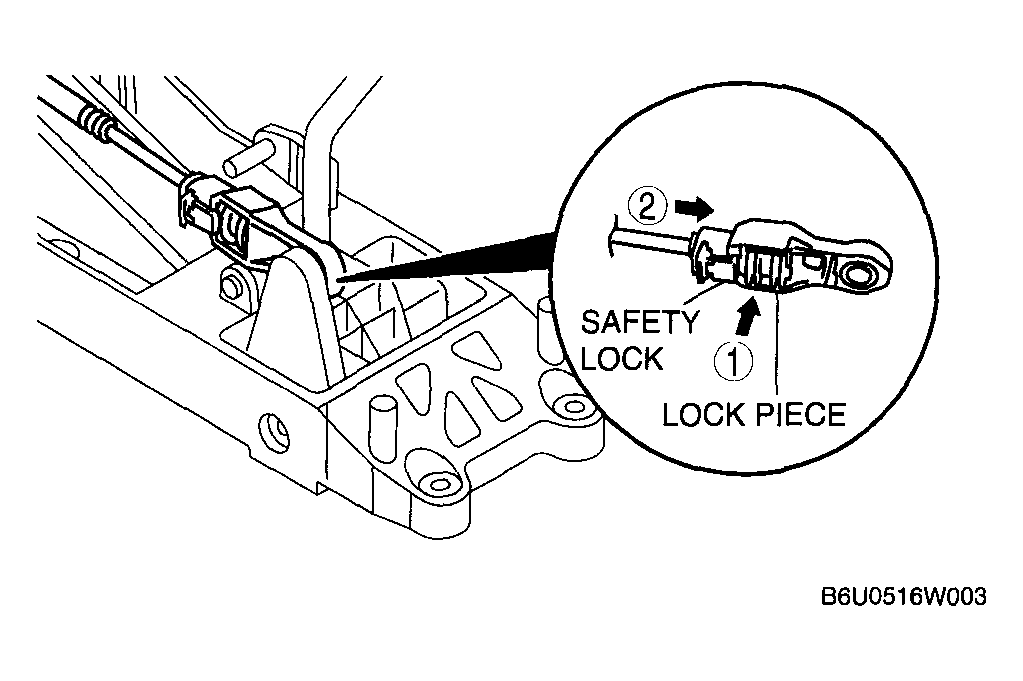

Fig 4: Installing Select Cable - A65M-R Manual Transaxle Models
Courtesy of MAZDA MOTORS CORP.
