Spring Pin Assembly Note
Tap in a new spring pin shown in the figure.

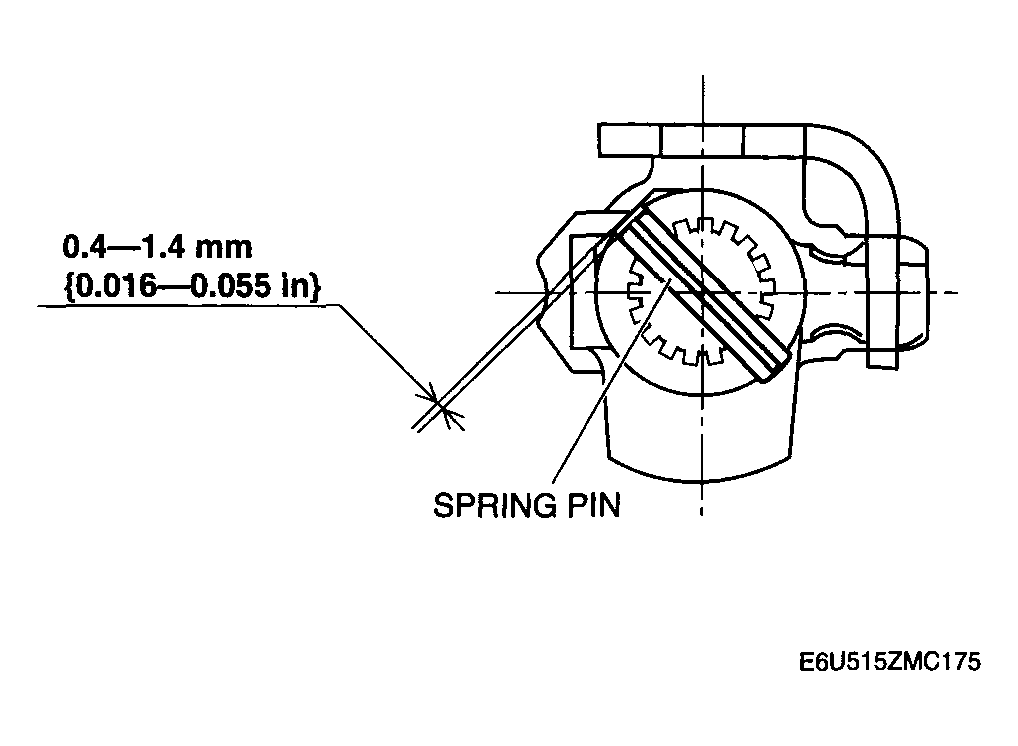

Fig 1: Tapping In Spring Pin
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
