AWD Control Module Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the lower panel.
  3. Remove in the order indicated in the table.
  4. Install in the reverse order of removal.

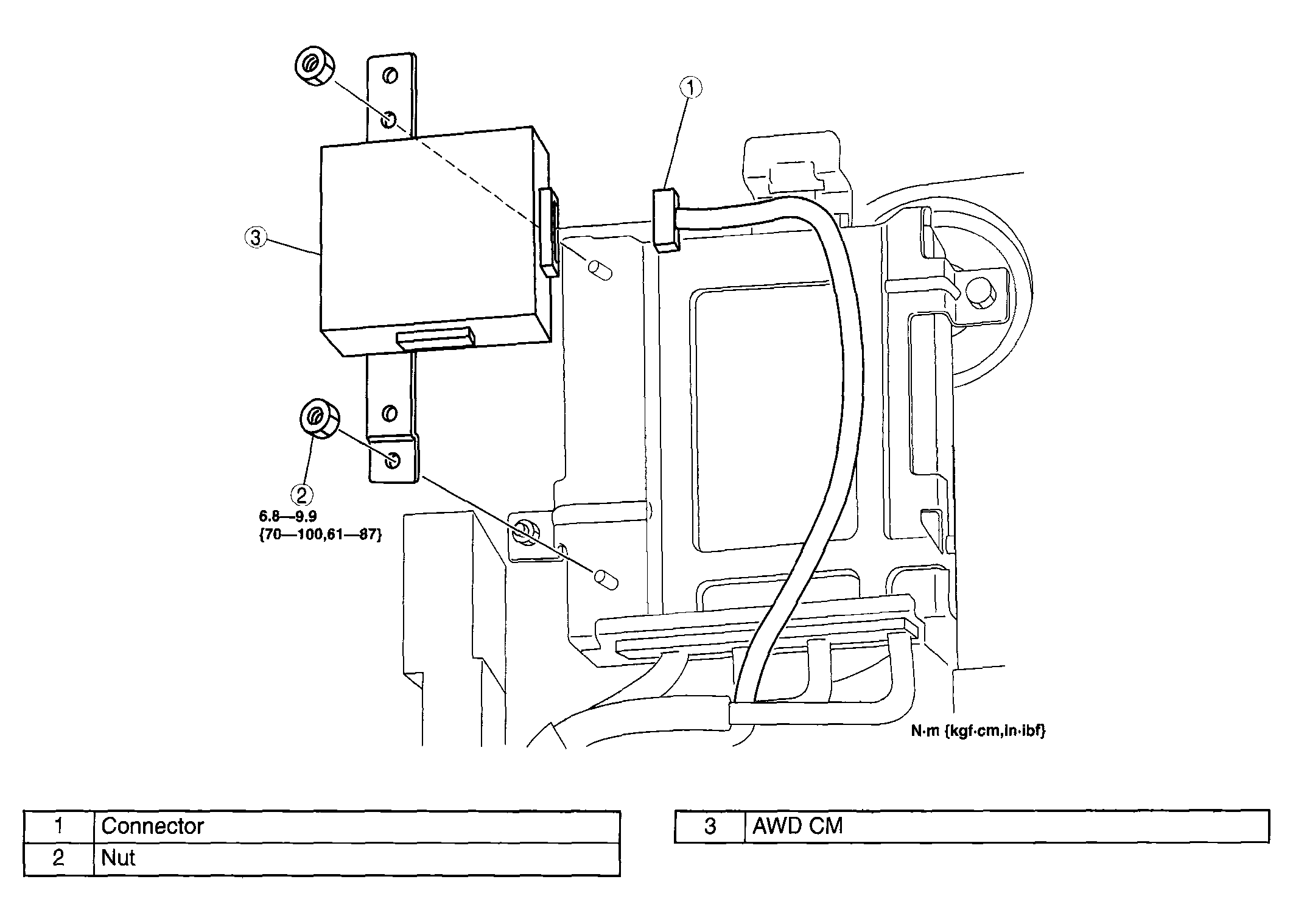

    Fig 1: AWD Control Module & Torque Specification
    G04325761Courtesy of MAZDA MOTORS CORP.
