Coupling Case Assembly Note

CAUTION:
  • The coupling unit will be damaged if it is pressed directly by a press. Always press the coupling unit into the coupling case using the SST.
  1. Assemble the coupling unit to the coupling case using the SSTs  and a press.

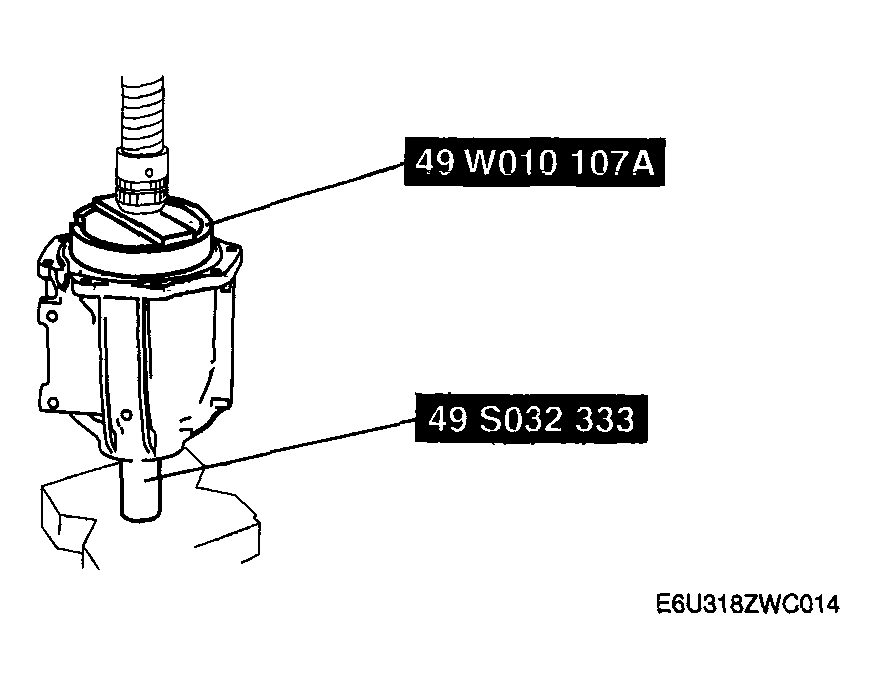

    Fig 1: Assembling Coupling Unit To Coupling Case
    G04325776Courtesy of MAZDA MOTORS CORP.
