Transfer Component Assembly

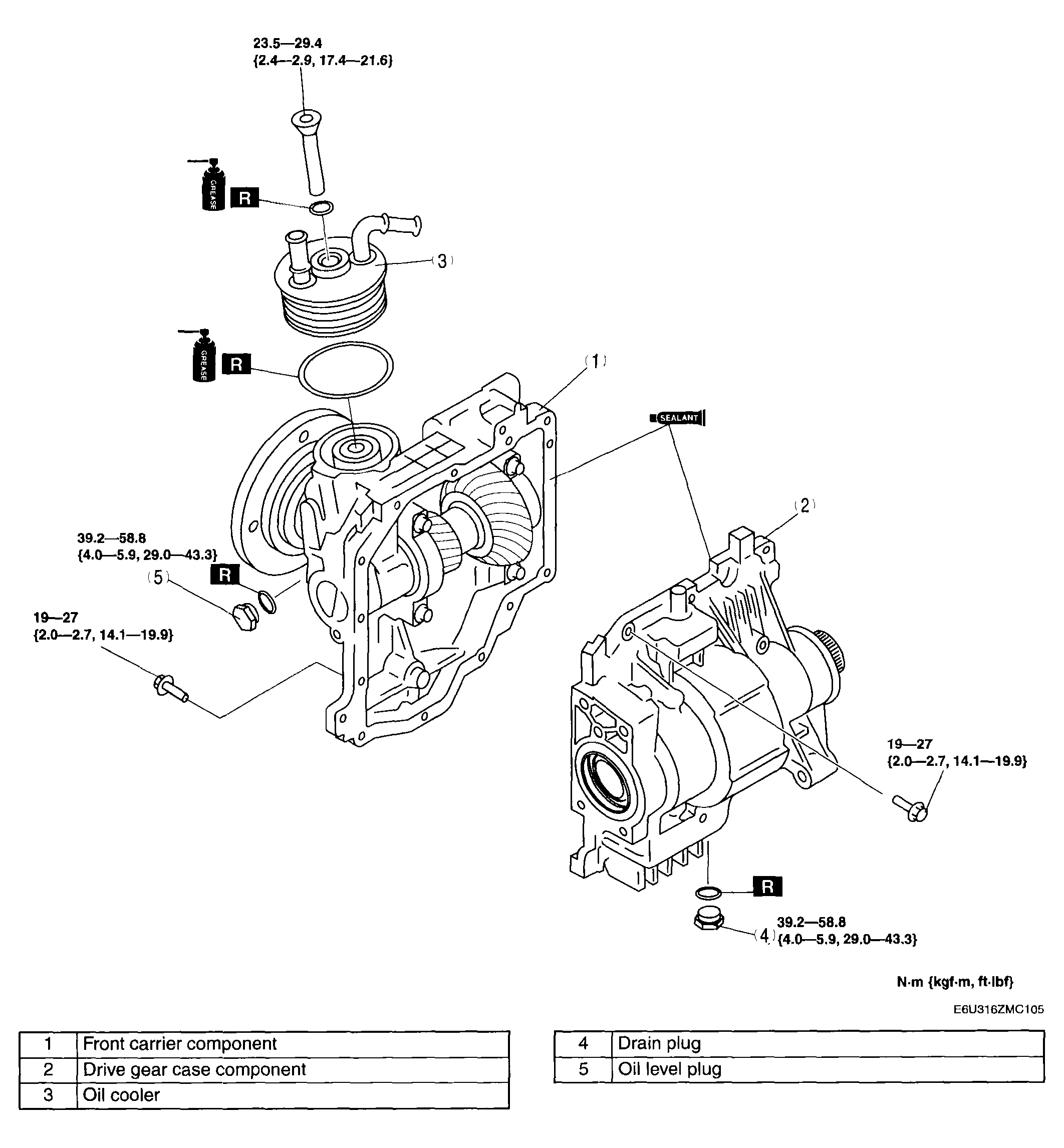

Fig 1: Transfer Components & Torque Specification
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
