Transfer Component Disassembling Procedure

  1. Assemble the SSTs.

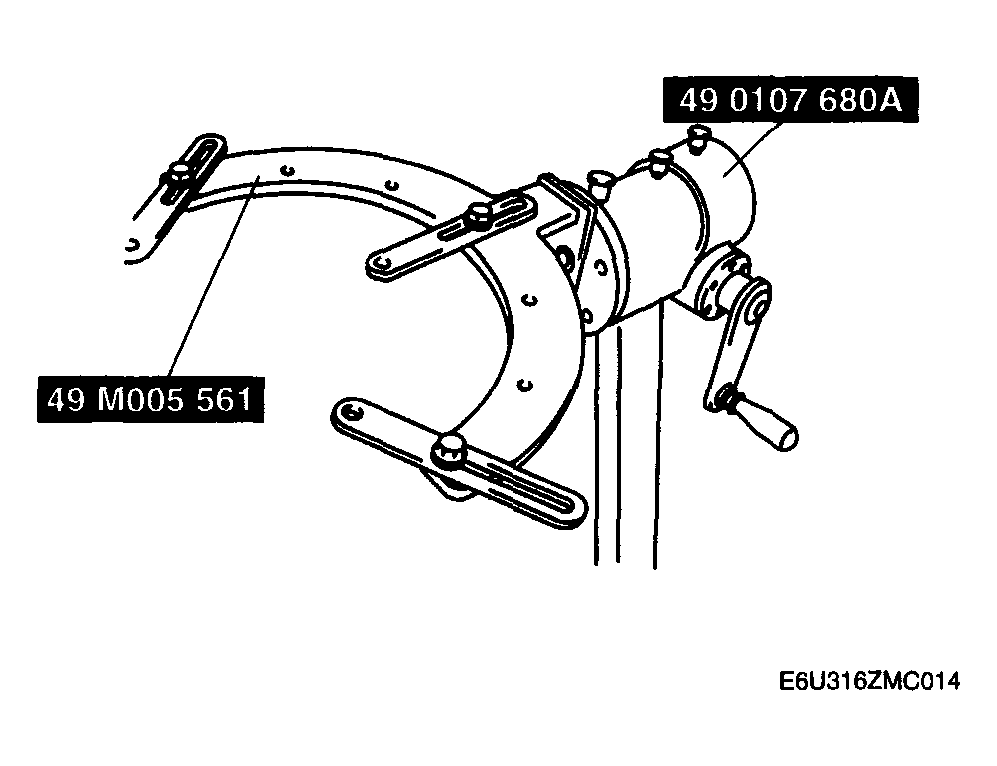

    Fig 1: Assembling SSTs
    G04330783Courtesy of MAZDA MOTORS CORP.
  2. Install the transfer component to the SSTs  .
  3. Remove the oil cooler.
  4. Remove the drive gear case component.

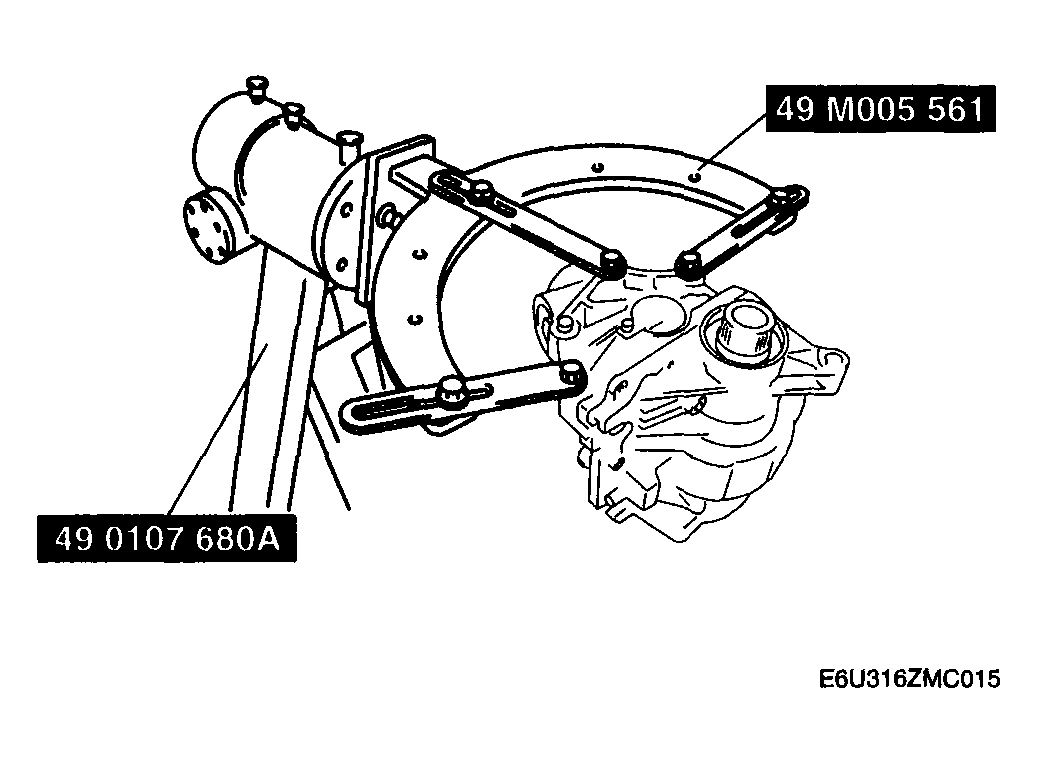

Fig 2: Installing Transfer Component To SSTs
G04330784Courtesy of MAZDA MOTORS CORP.
