DTC P0245: Notes
DTC P0245 DETECTION CONDITION AND POSSIBLE CAUSES
| DTC P0245 |
Turbocharger wastegate solenoid low |
| DETECTION CONDITION |
- When the PCM turns the wastegate control solenoid valve off but the wastegate control solenoid valve circuit voltage is low, the PCM determines that the wastegate control solenoid valve control circuit voltage is low.
Diagnostic support note
- This is a continuous monitor (Other).
- The MIL does not illuminate.
- PENDING CODE is available if the PCM detects the above malfunction condition during first drive cycle.
- FREEZE FRAME DATA is not available.
- DTCs are stored in the PCM memory.
|
| POSSIBLE CAUSE |
- Wastegate control solenoid valve malfunction
- Connector or terminal malfunction

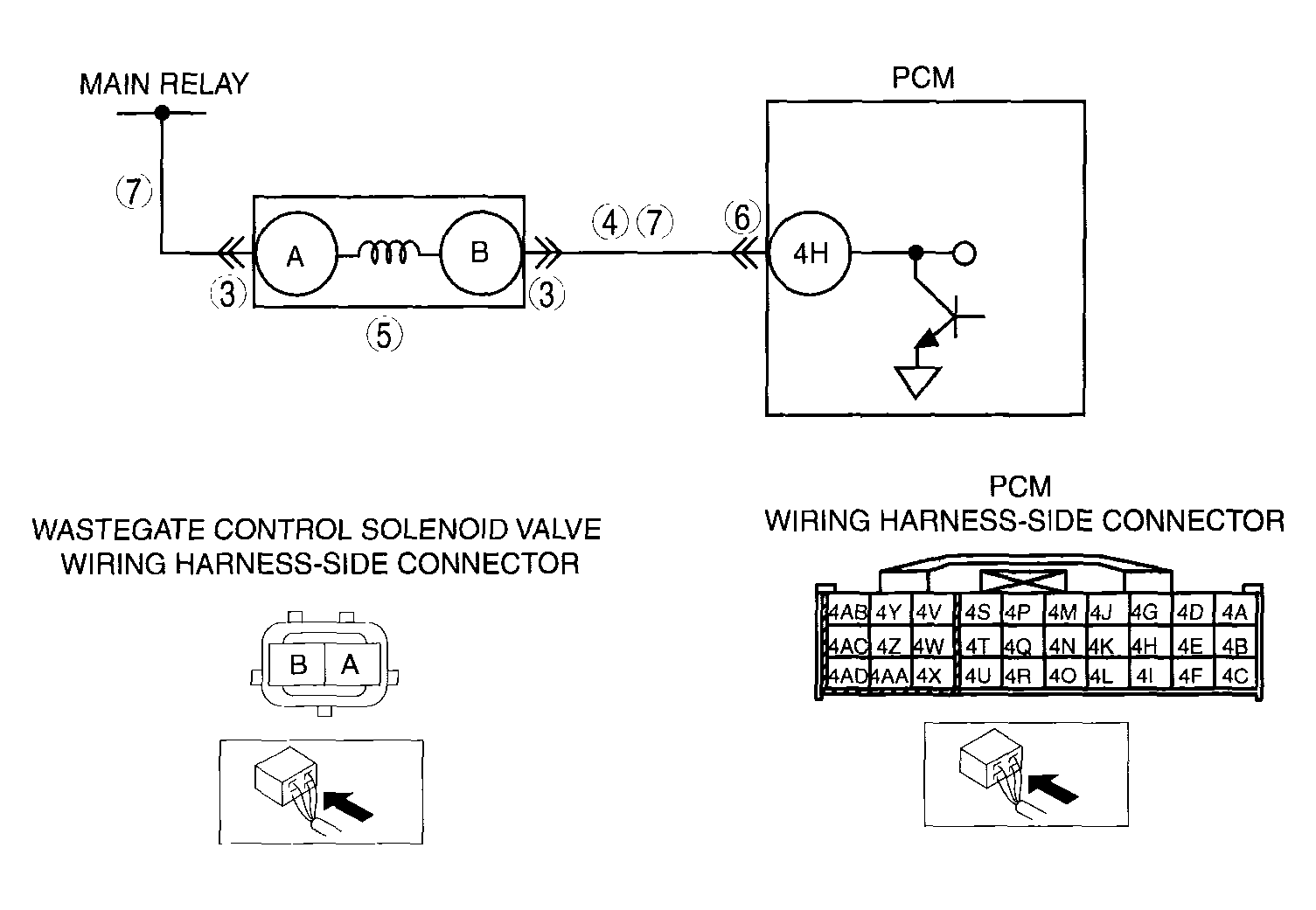

- Open circuit in the wiring harness between wastegate control solenoid valve terminal A and main relay
- Open circuit in the wiring harness between wastegate control solenoid valve terminal B and PCM terminal 4H
- Short to ground in the wiring harness between wastegate control solenoid valve terminal B and PCM terminal 4H
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
