PCM Adaptive Memory Production Drive Mode

  1. Start the engine and warm it up completely.
  2. Verify the following conditions and correct if necessary:
    • All accessory loads (A/C, headlights, blower fan, rear window defroster) are off.
  3. Perform no load racing at the engine speed shown in the graph, then idle the engine for more than 60 s  after the cooling fan has stopped. If possible, monitor RPM PID for engine speed during this procedure.

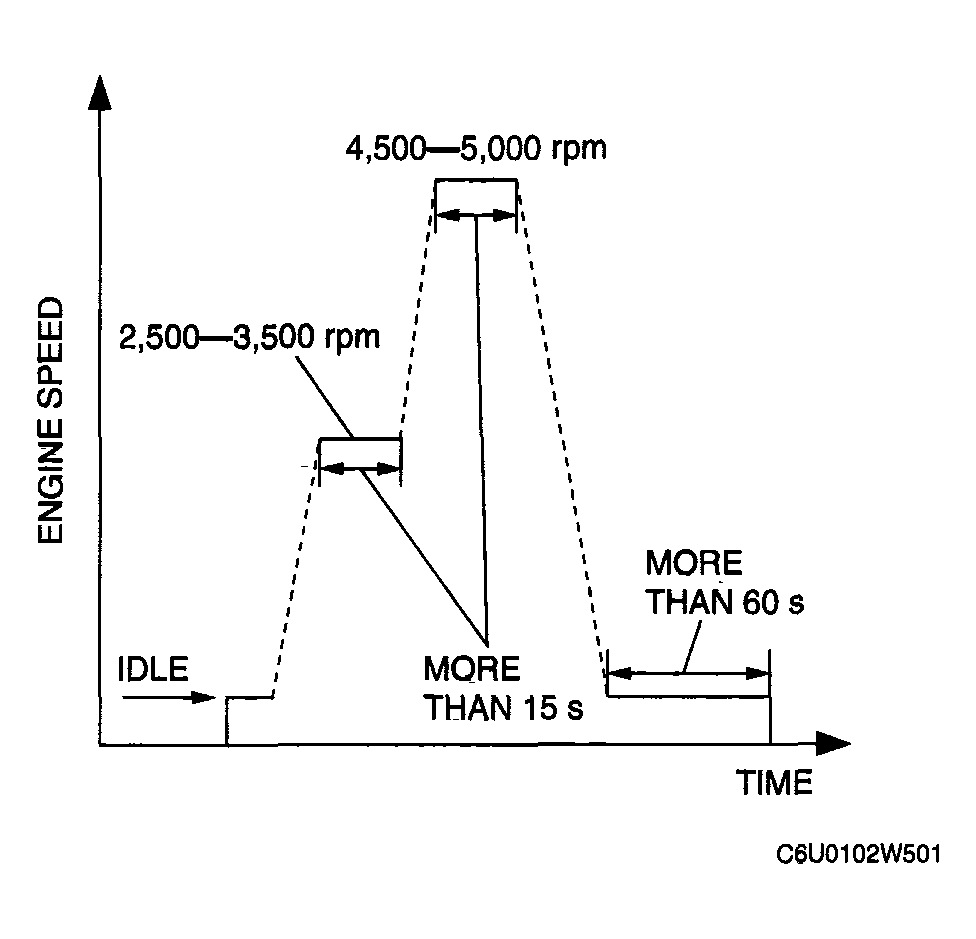

    Fig 1: Engine Speed Graph
    G04324079Courtesy of MAZDA MOTORS CORP.
