Bushing (Rear Side) Installation Note

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the marks placed during removal and install the bushing.

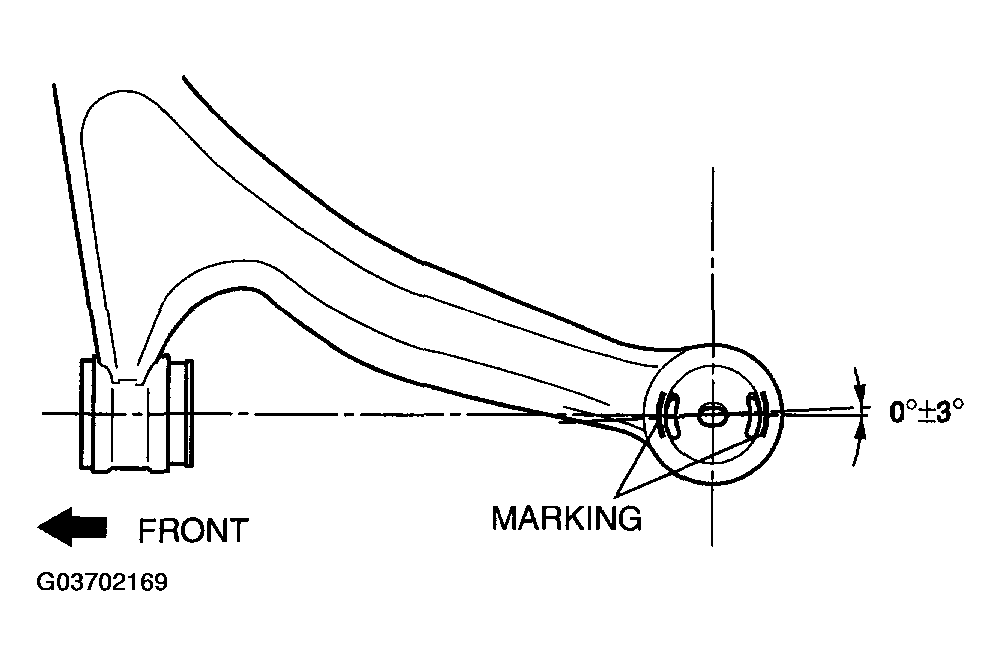

    Fig 1: Aligning The Marks On Bushing
    G03702169Courtesy of MAZDA MOTORS CORP.
  2. Press the bushing in using the SSTs.

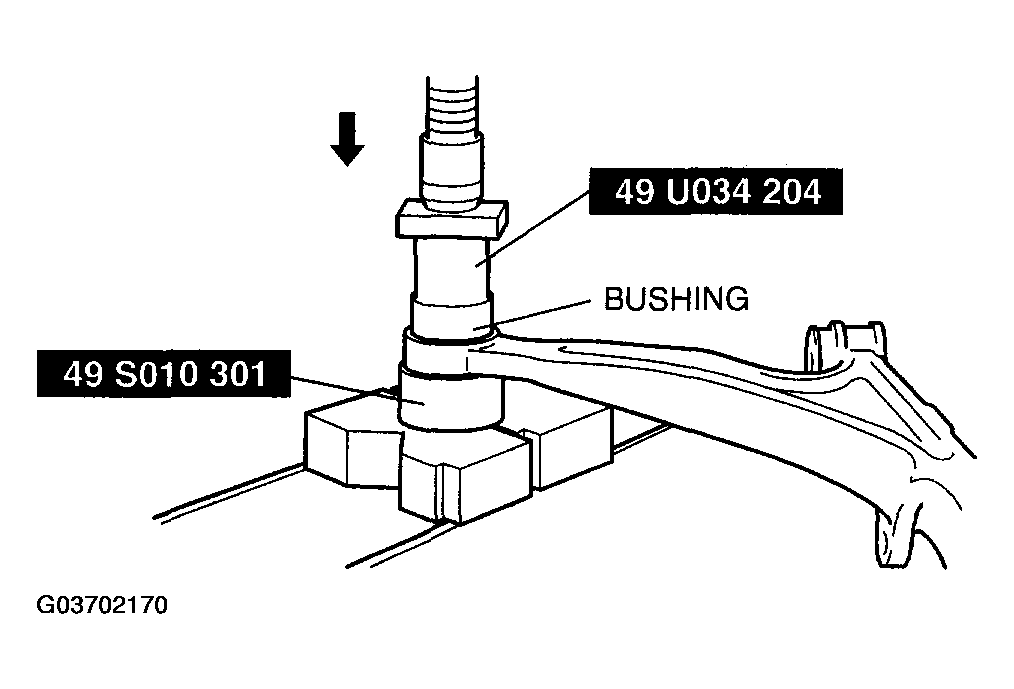

    Fig 2: Pressing The Bushing Using SSTs
    G03702170Courtesy of MAZDA MOTORS CORP.
