Technical Data AJ w/ VVT

ENGINE TECHNICAL DATA

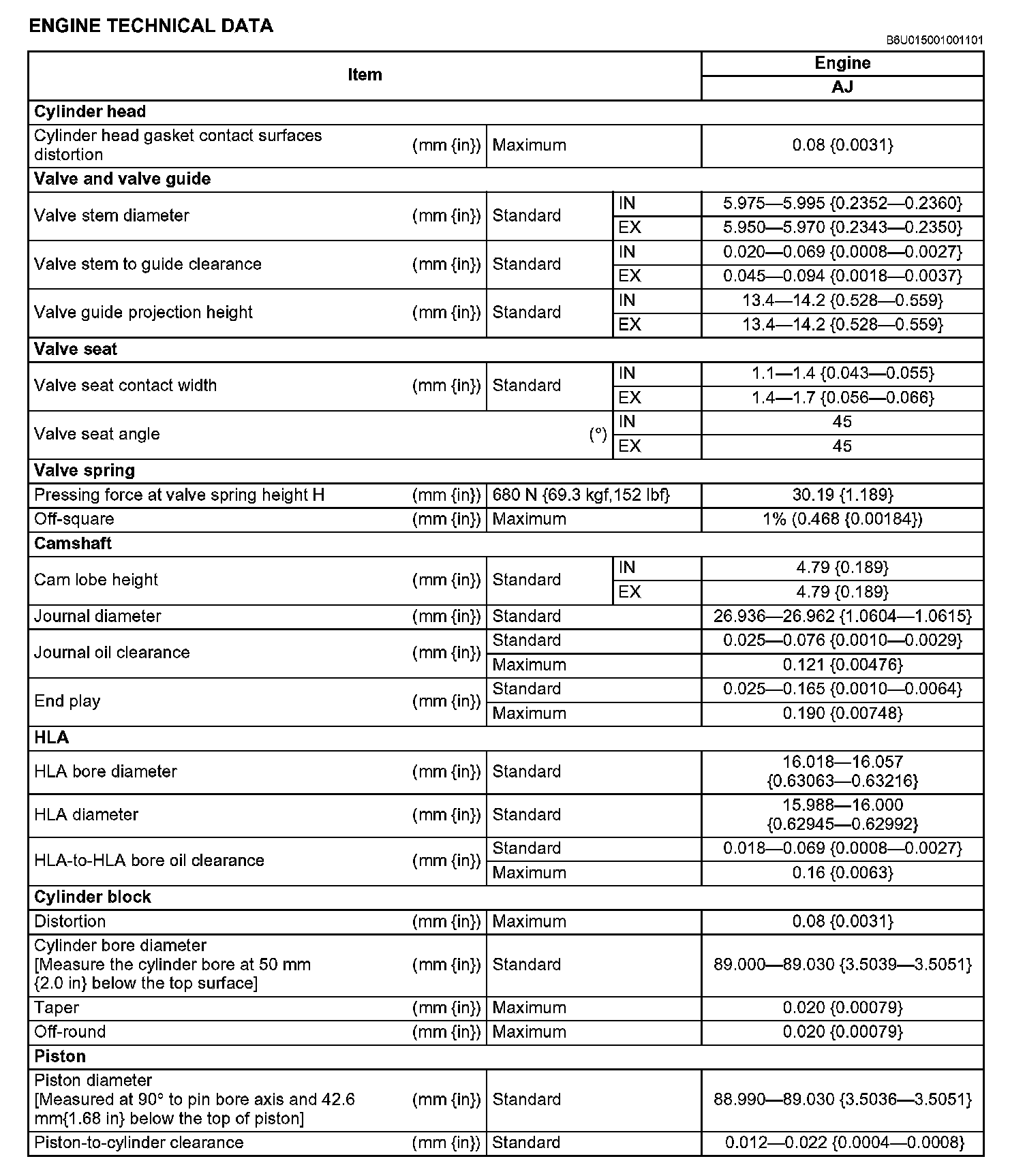

Engine Technical Data (Part 1):

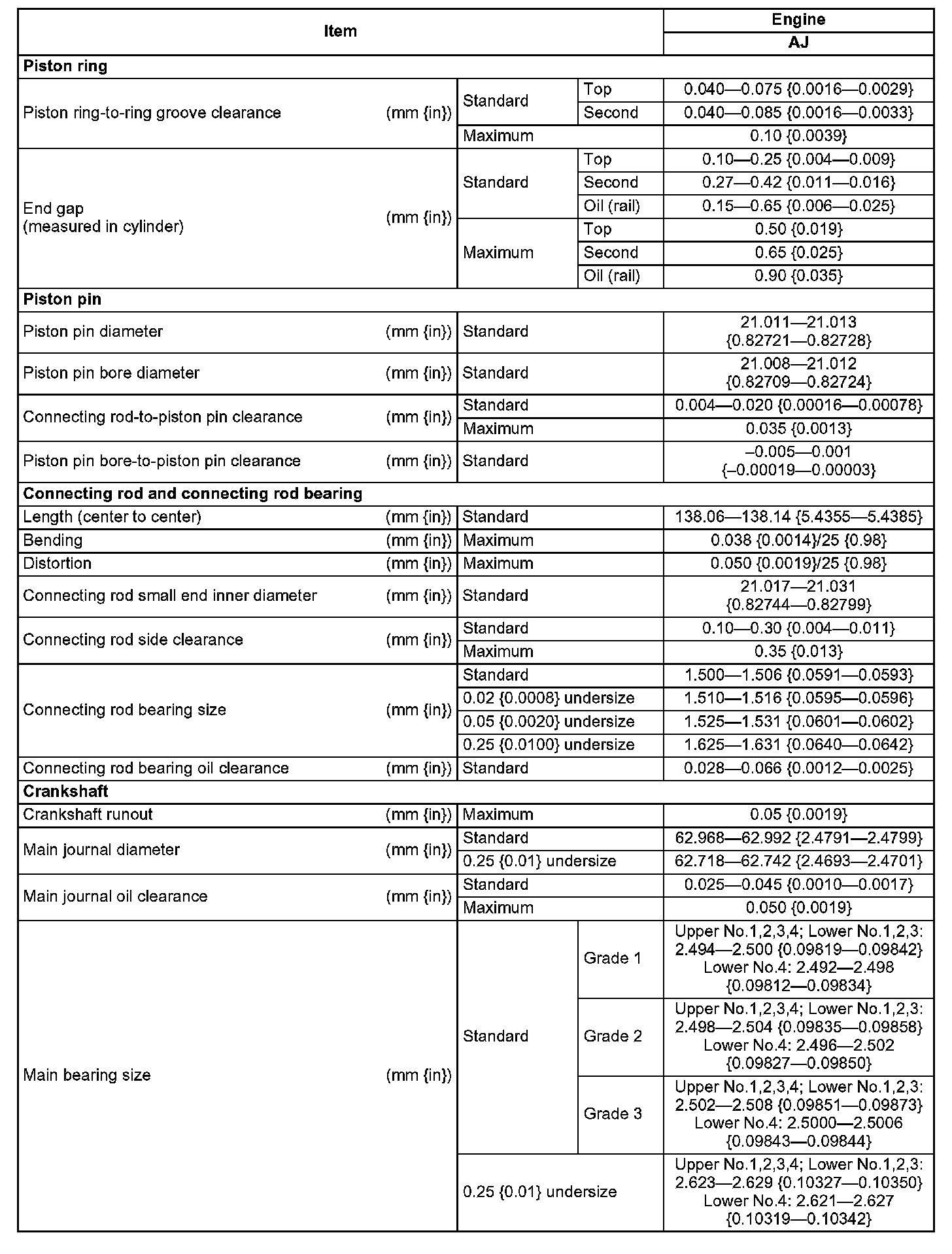

Engine Technical Data (Part 2):

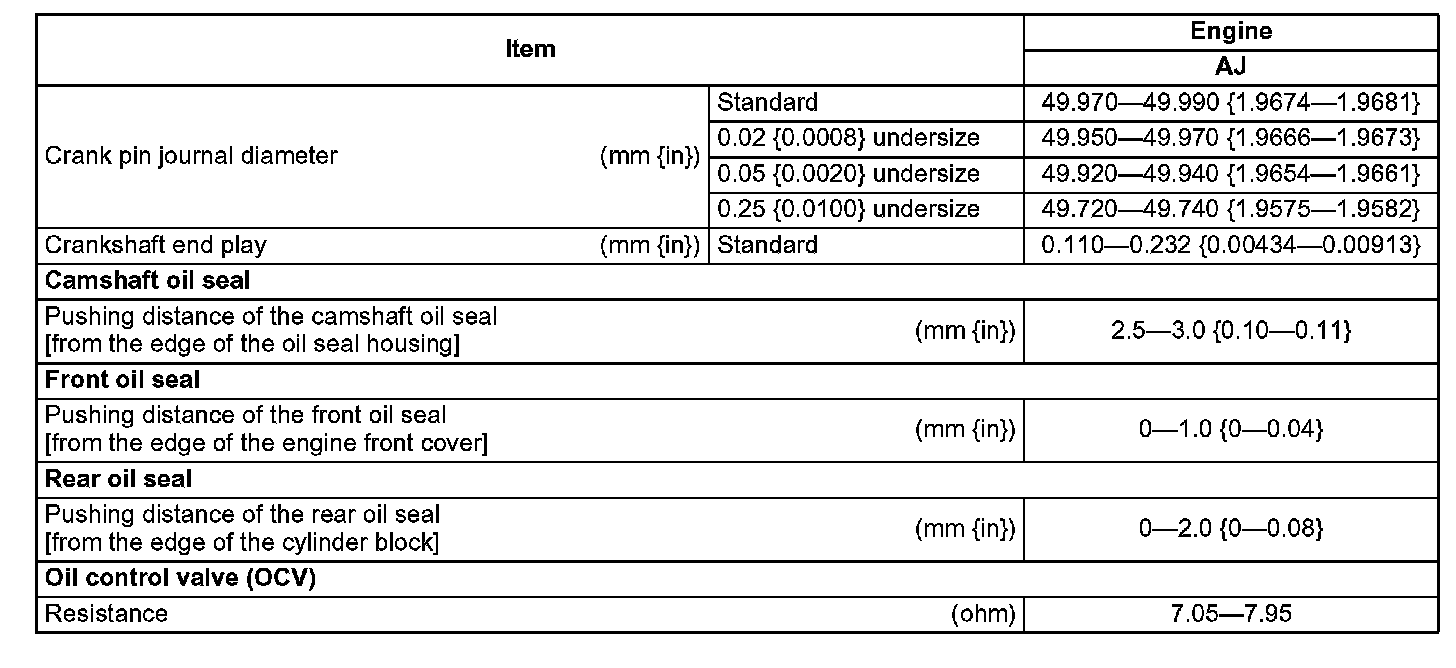

Engine Technical Data (Part 3):
