Resistance Inspection

  1. Disconnect the negative battery cable.
  2. Disconnect the MAF/IAT sensor connector.
  3. Measure the resistance between the MAF/IAT sensor terminals D and E using an ohmmeter.
    • If the IAT sensor is okay, but the PID value is out of specification, perform the "Circuit Open/Short Inspection".
    • If not as specified, replace the MAF/IAT sensor. (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION ).

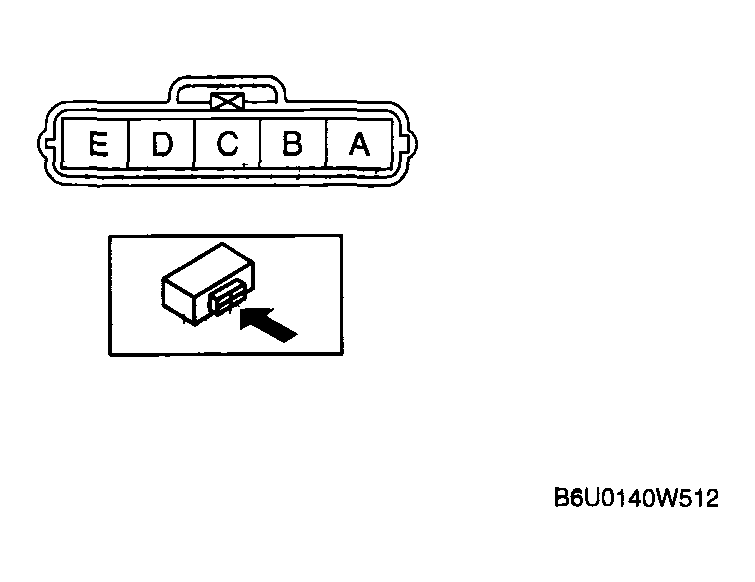

      Fig 1: Identifying MAF/IAT Sensor Connector Terminals
      G04325325Courtesy of MAZDA MOTORS CORP.

    Specification

    RESISTANCE SPECIFICATION

    Ambient temperature (°C {°F}) Resistance (kilohm)
    -20 {-4} 13.6-18.4
    20 {68} 2.21-2.69
    60 (140} 0.493-0.667

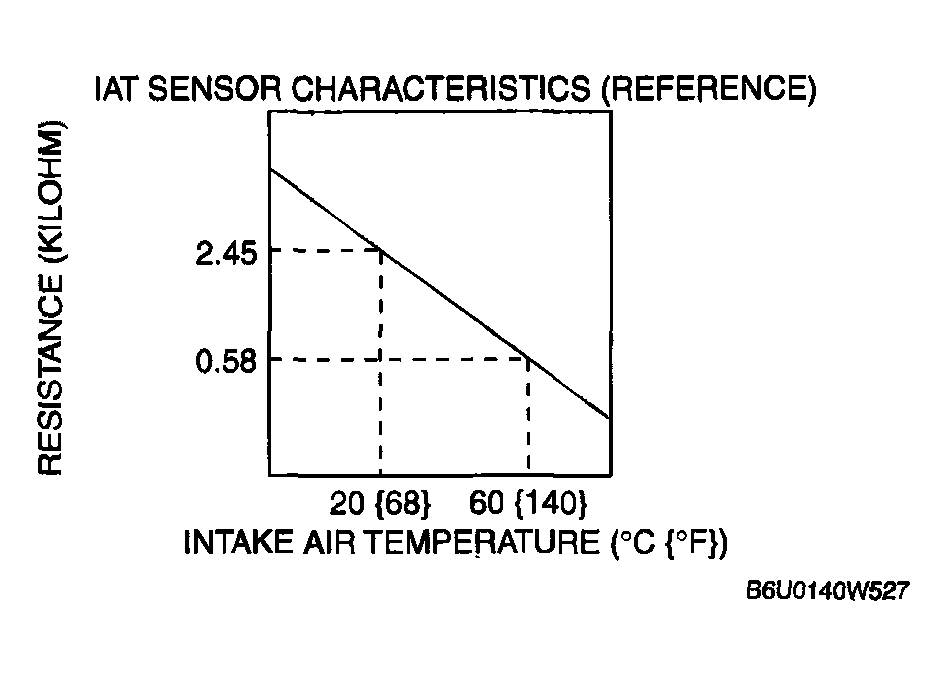

    Fig 2: IAT Sensor Characteristics Graph
    G04325326Courtesy of MAZDA MOTORS CORP.
