Steering Shaft Installation Note

CAUTION:
  • Do not apply a shock in the axial direction of the shaft.
  1. Lock the tilt lever.
  2. Tighten bolt A.
  3. Tighten nut B.
  4. Tighten nut C.

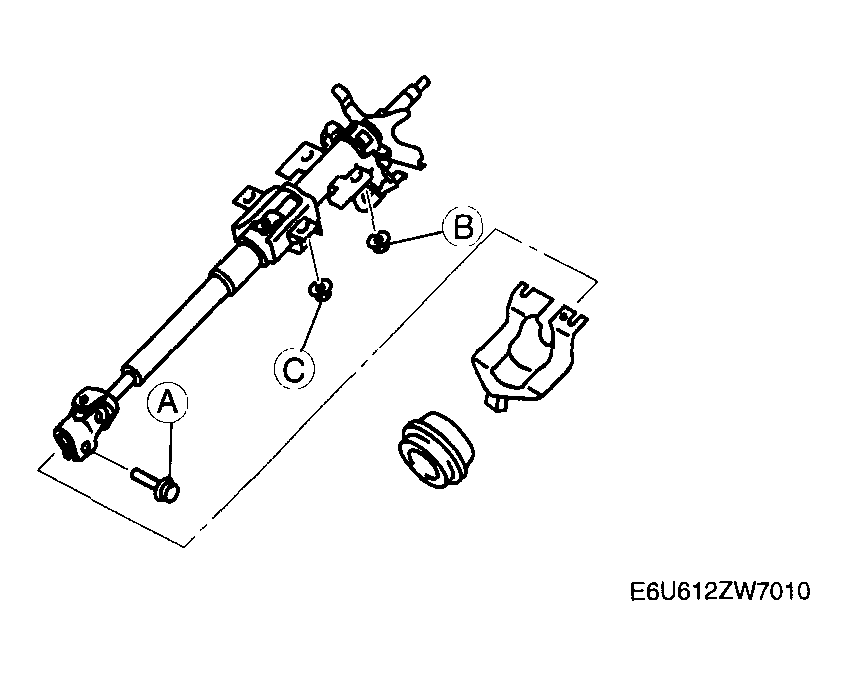

    Fig 1: Installing Steering Shaft
    G04326529Courtesy of MAZDA MOTORS CORP.
