Clutch Switch: Service and Repair

CLUTCH PEDAL POSITION (CPP) SWITCH REMOVAL / INSTALLATION
1. Disconnect negative battery cable. See BATTERY DISCONNECT.

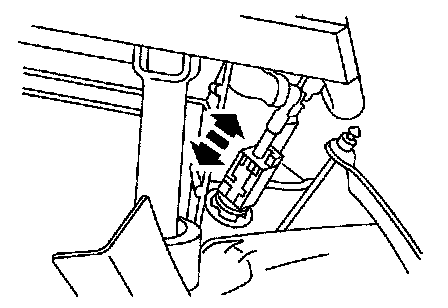

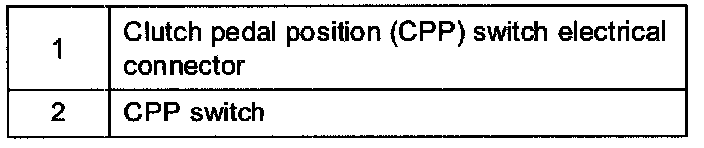

2. Disconnect clutch pedal position (CPP) switch electrical connector.

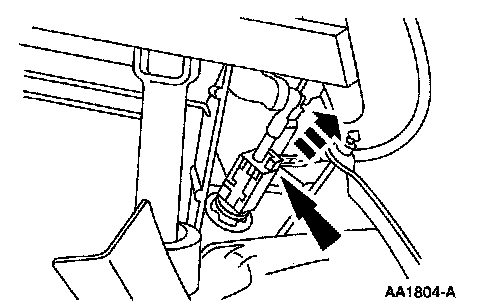

3. Spread the CPP switch apart and remove from the pedal rod.
4. To install, reverse the removal procedure.
