PID/Data Monitor Item Table 2

PID/DATA MONITOR ITEM TABLE

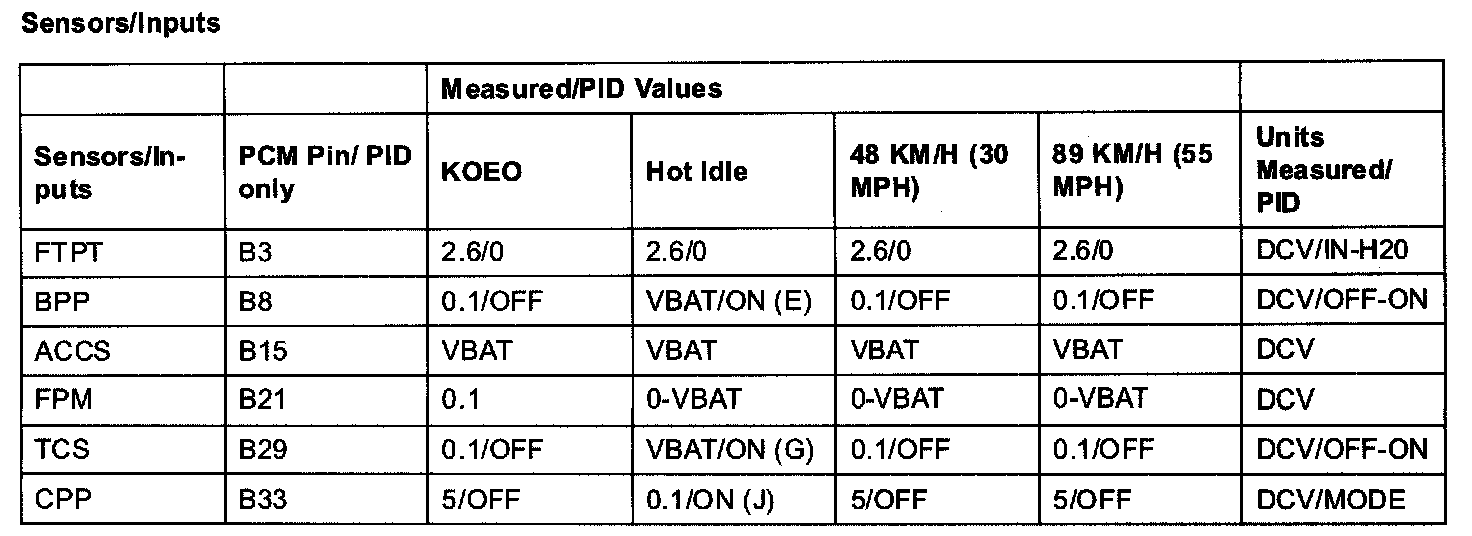

Sensors/Inputs (Part 1):

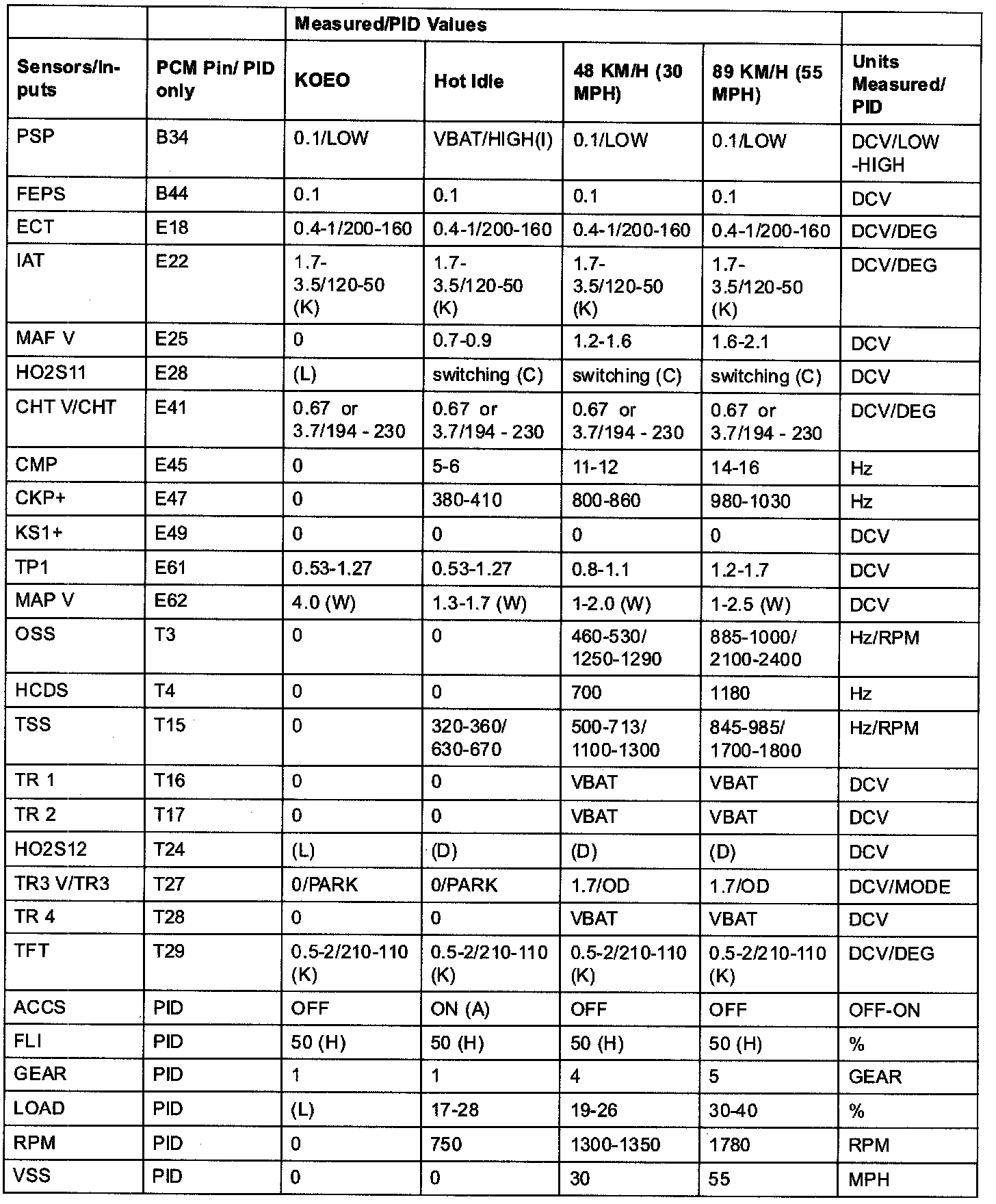

Sensors/Inputs (Part 2):




Sensors/Inputs

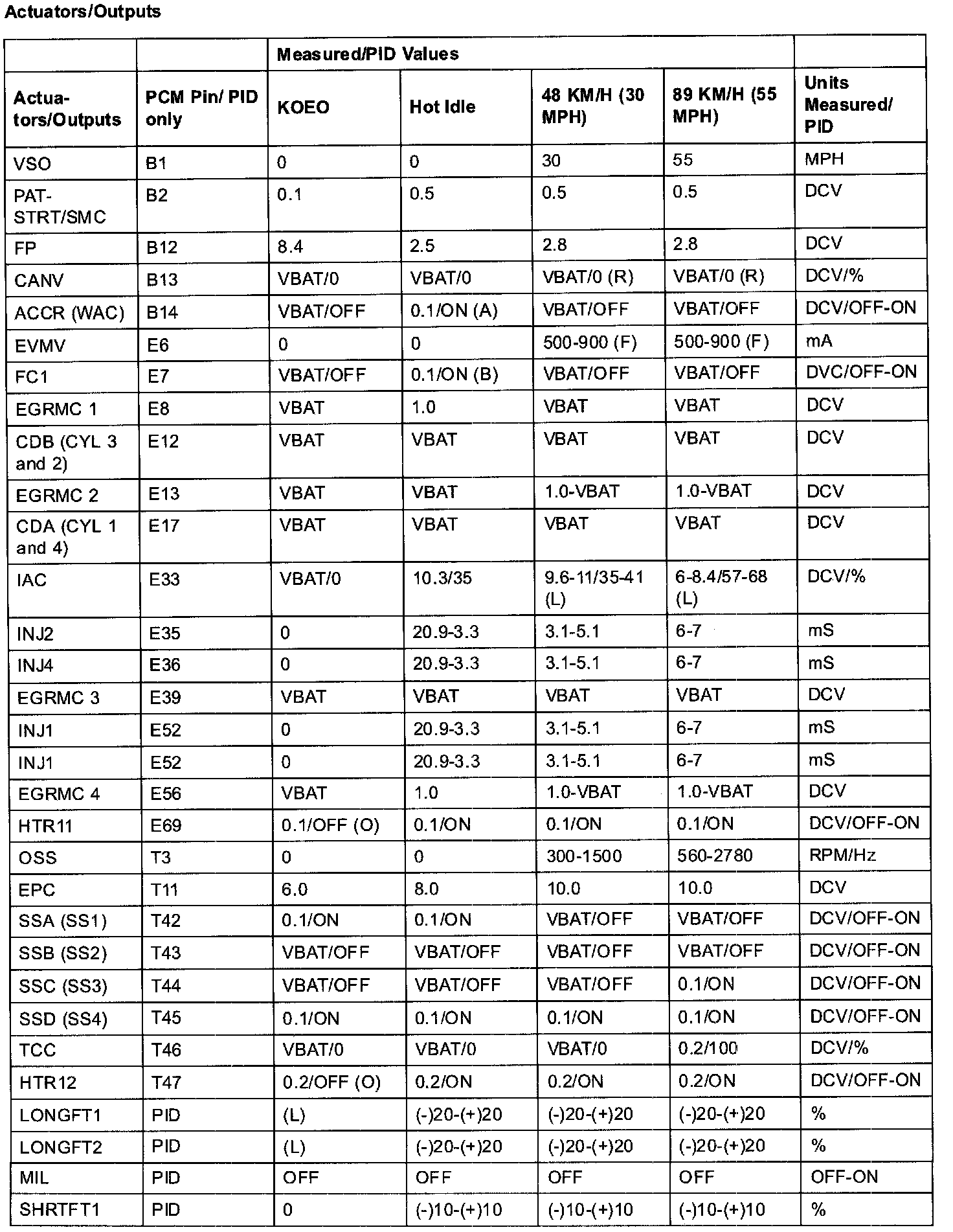

Actuator/Outputs (Part 1):

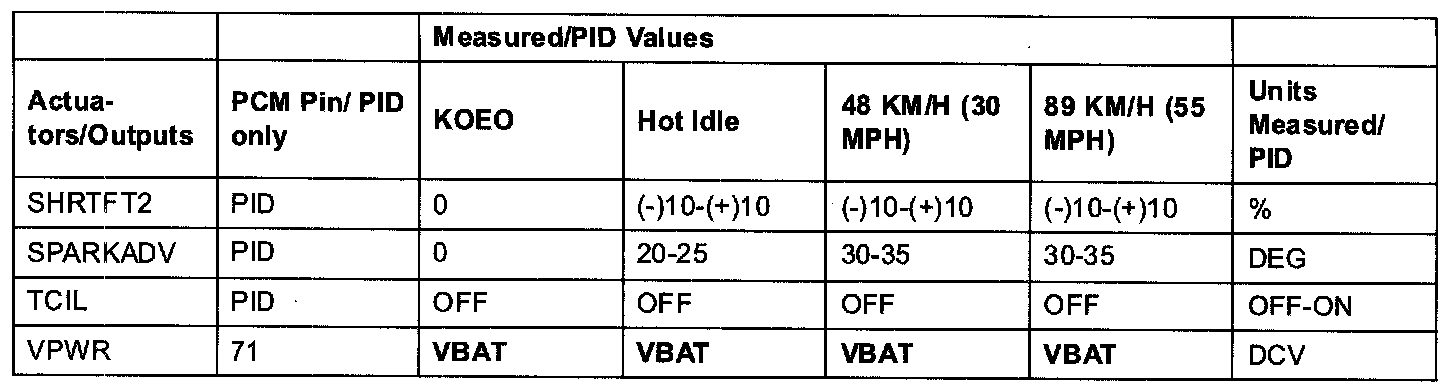

Actuator/Outputs (Part 2):




Actuators/Outputs

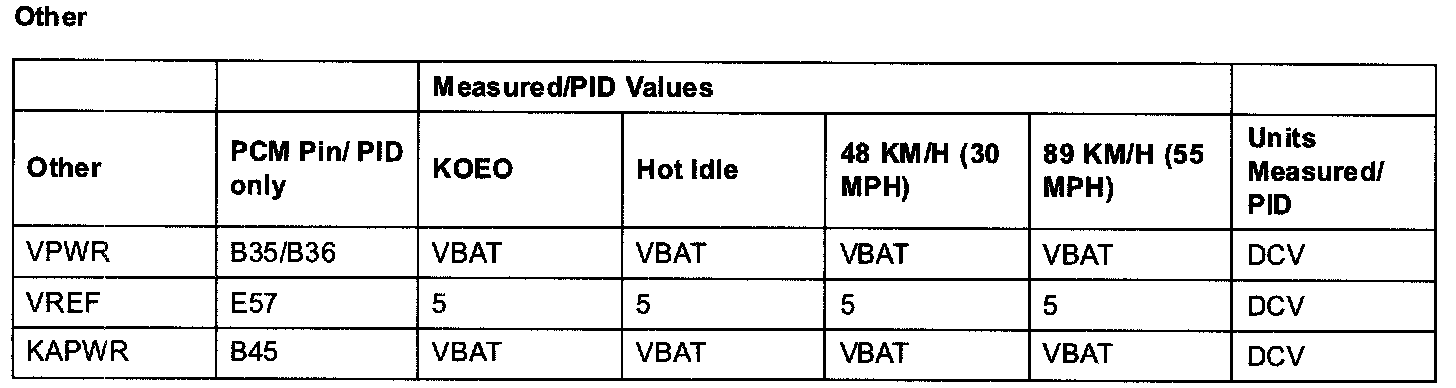

Other:




Other
