Power Window Switch: Service and Repair

Window Control Switch

Removal and Installation

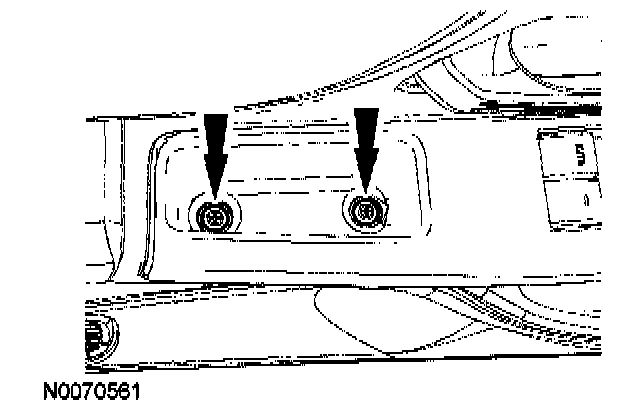

1. Remove the 2 door trim panel finish panel screws.







2. Remove the door trim panel finish panel.
- Disconnect he electrical connector.

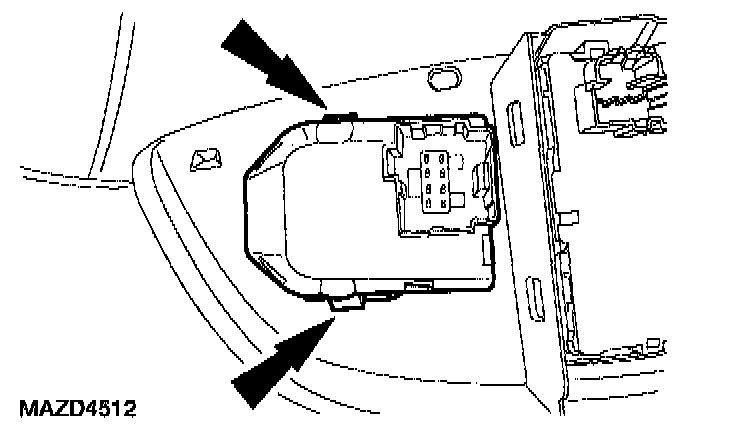

3. Remove the window control switch from the door trim panel finish panel.
4. To install, reverse the removal procedure.
