Inline Connector End View (C144)

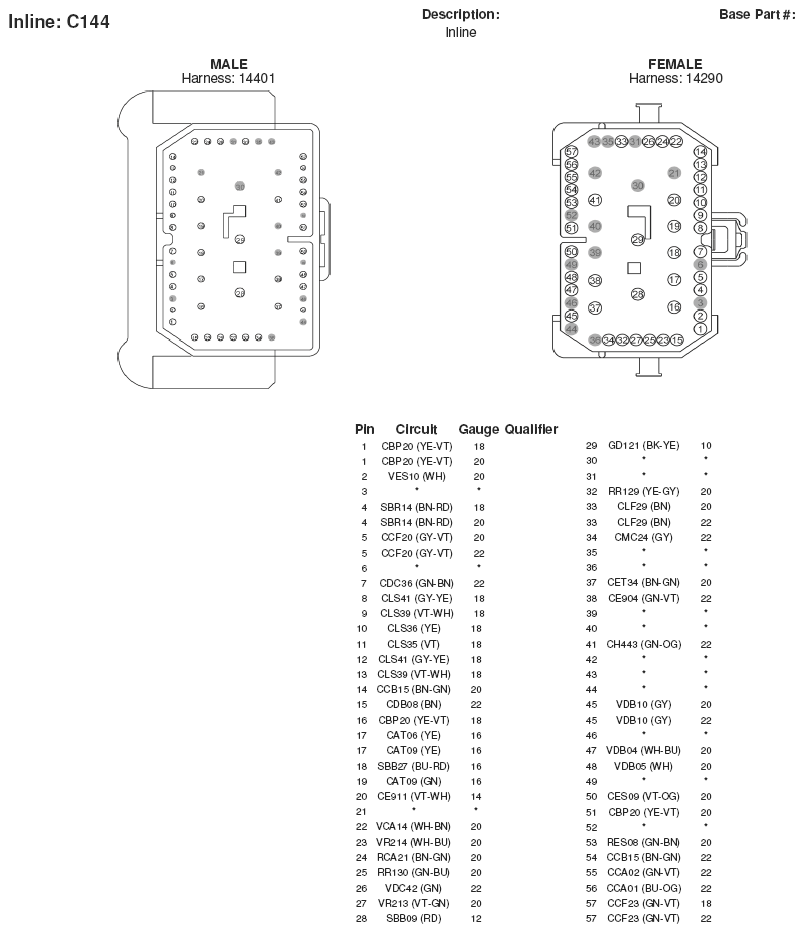

Fig 1: Inline Connector End View (C144)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
