Audio System Description

The B-Series is available with the following audio systems:

• M100ULC-AM/FM stereo
• M100CD-AM / FM with single CD
• DM100-AM / FM with cassette and single CD
• CDX6-AM / FM with six CD in-dash

AM / FM Radio

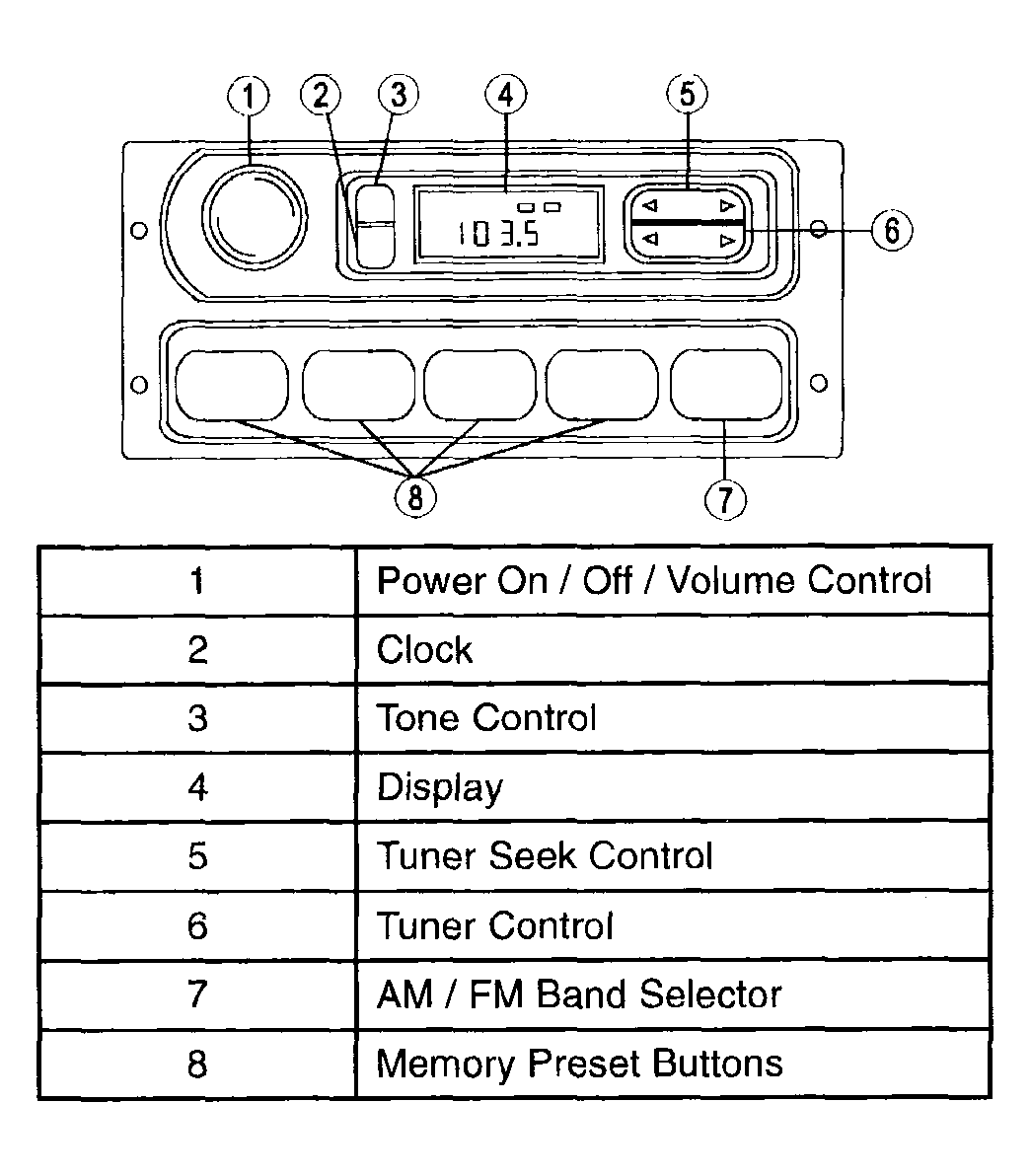

Fig 1: Identifying AM/FM Radio Controls

Courtesy of MAZDA MOTORS CORP.

AM / FM Single Compact Disc Radio

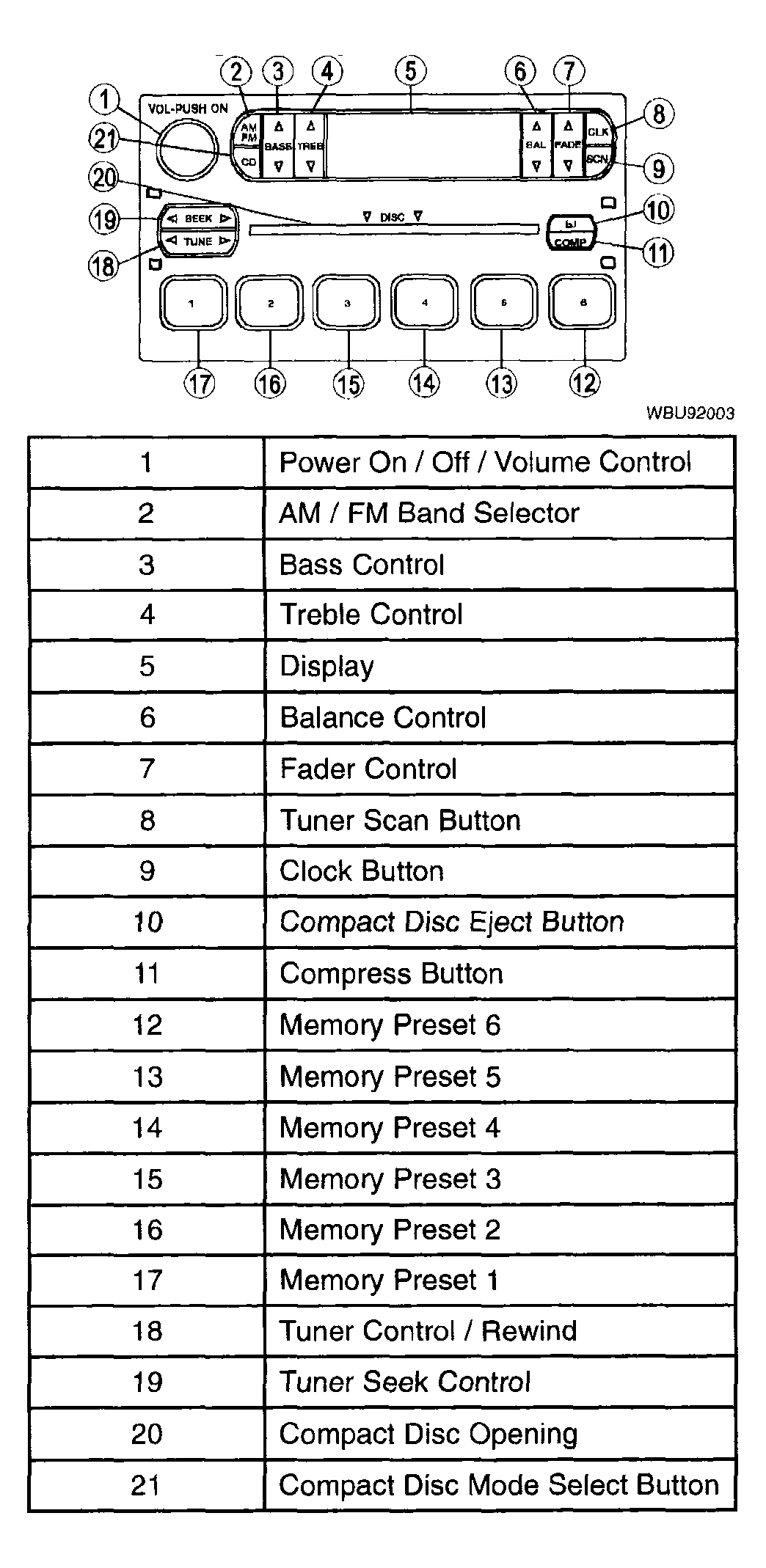

Fig 2: Identifying AM/FM Single Compact Disc Radio Controls

Courtesy of MAZDA MOTORS CORP.

AM / FM - Dual Media Radio

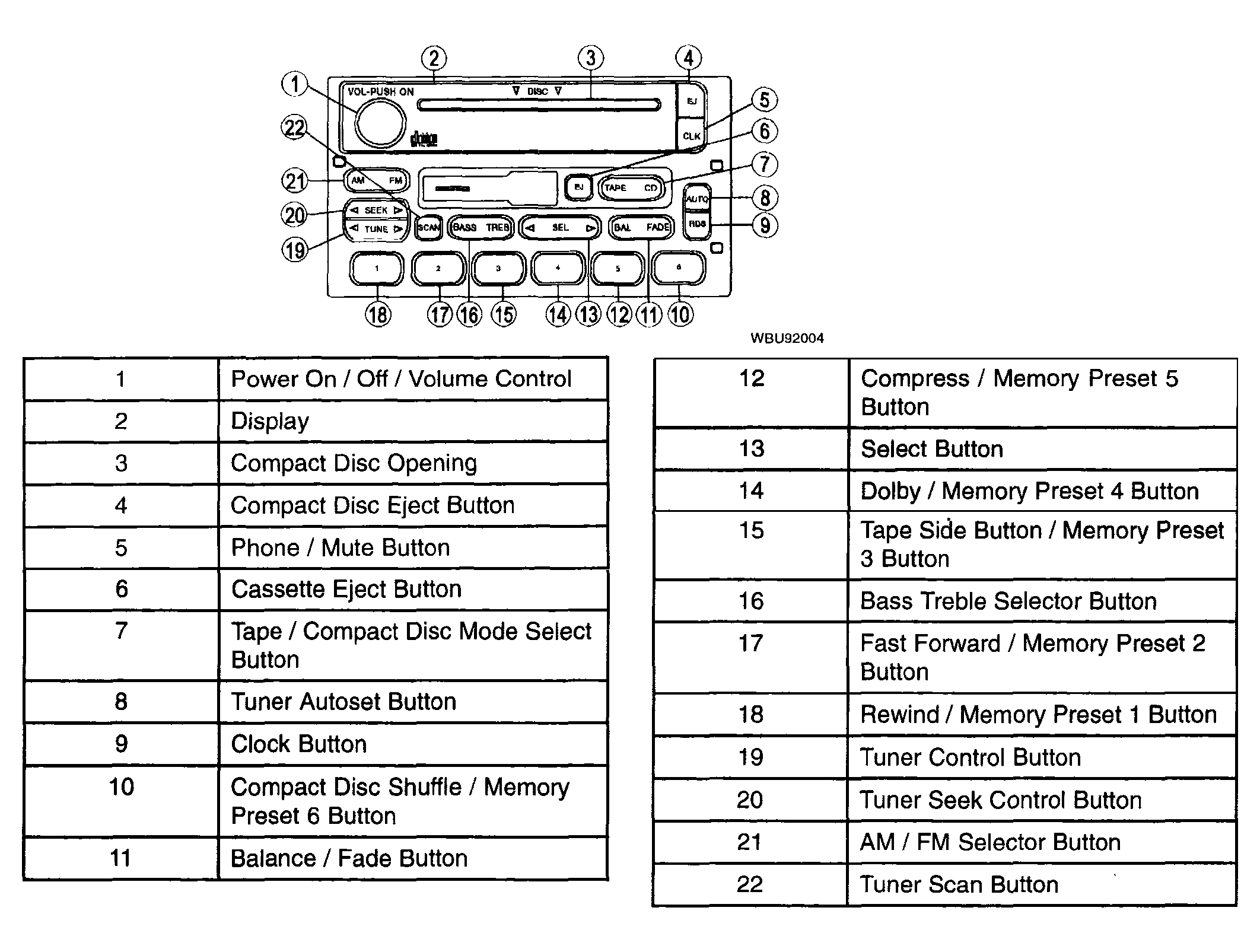

Fig 3: Identifying AM/FM - Dual Media Radio Controls

Courtesy of MAZDA MOTORS CORP.

Radio Frequency Interference Suppression Equipment

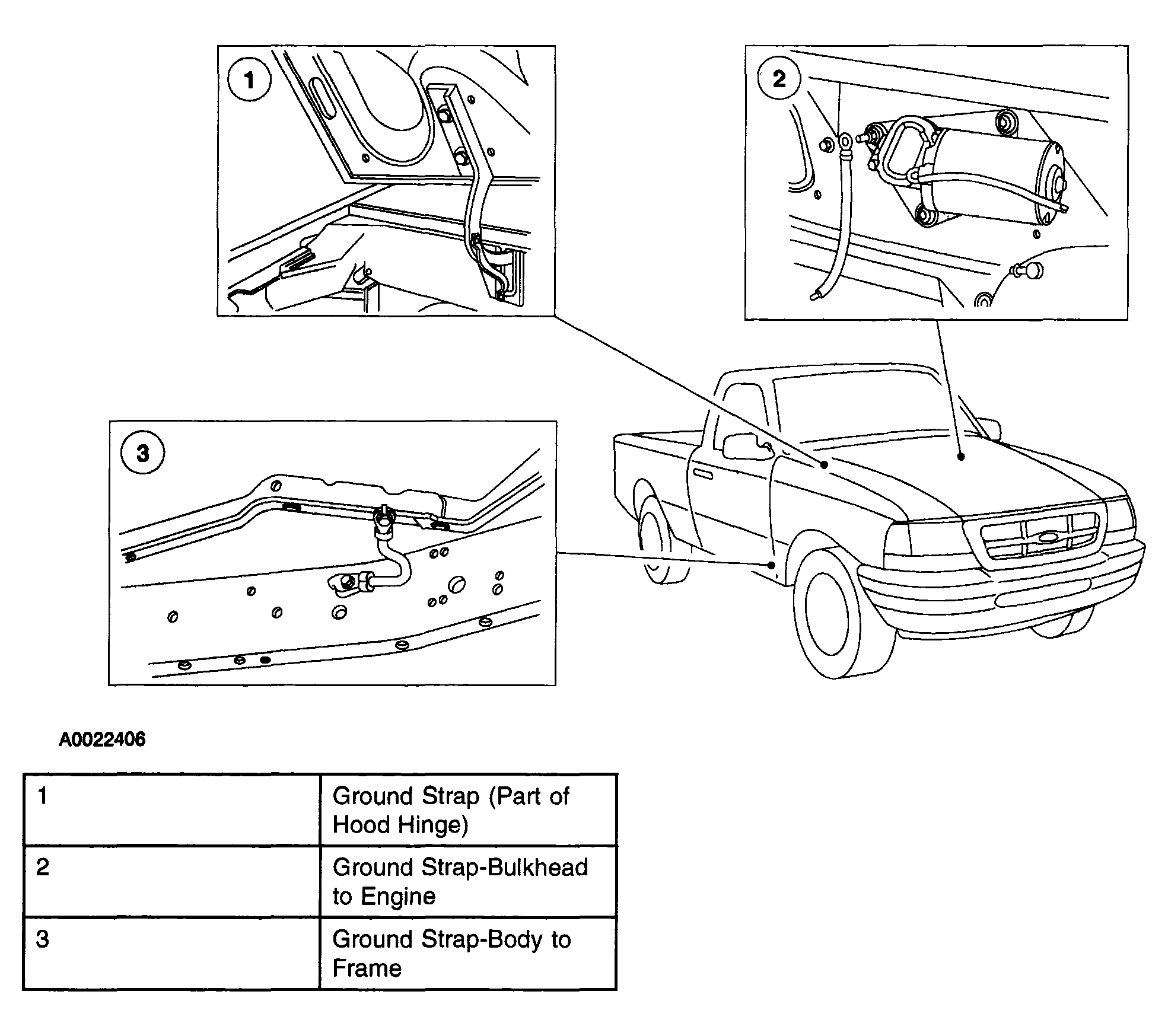

Fig 4: Identifying Radio Frequency Interference Suppression Equipments

Courtesy of MAZDA MOTORS CORP.

The radio suppression equipment reduces interference transmitted through the speakers by the engine ignition and electrical systems.
